Laser welded diamond Asphalt blades have high strength and also improve its cutting performance.
The undercut segments can protect the steel core, it can reduce the stress to the steel core and prevent steel core cracking during cutting the abrasive materials.
It can be installed on handheld saw, floor saw, walk-behind saw for dry or wet cutting asphalt, asphalt-concrete and other abrasive materials with superior efficiency.
Description

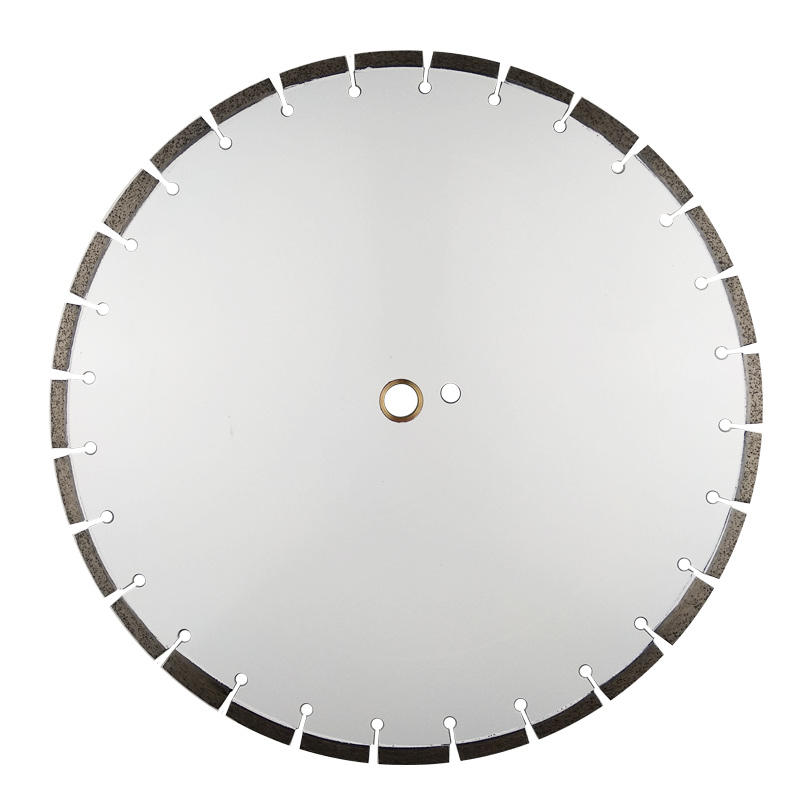

Asphalt diamond blade:
This blade is a diamond blade designed for cutting asphalt, asphalt-concrete and other abrasive materials.

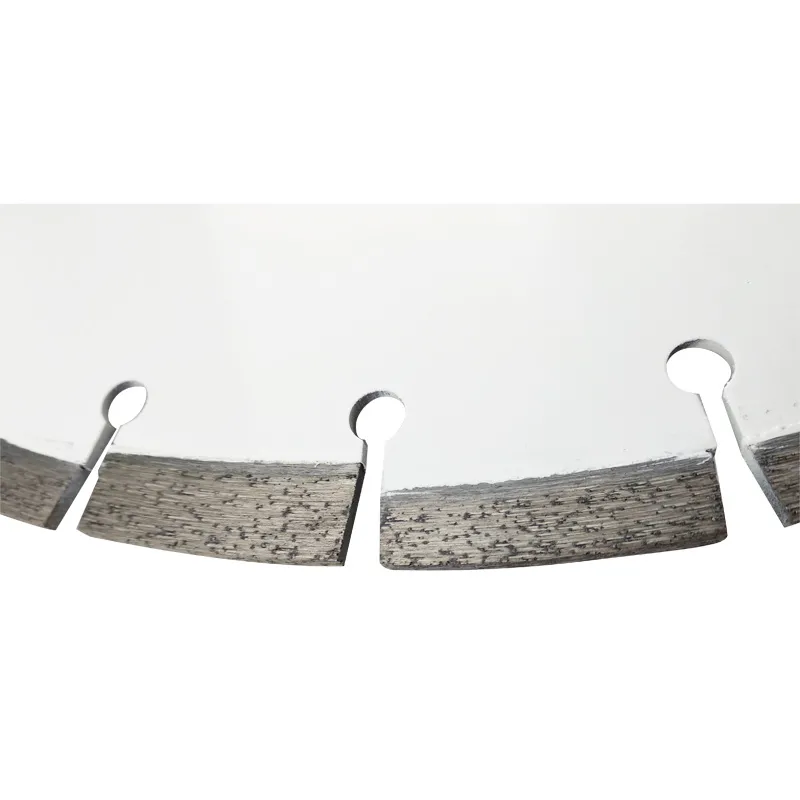

Protective segment for undercut protection.
The segmented design has better heat dissipation and reduces asphalt adhesion.
It can cut in dry or wet conditions, but in order to achieve maximum cutting performance of the saw blade, water can be used to cool the saw blade.
Asphalt saw blades are more abrasive and have a longer service life.
There are different diameters to choose from, and it is suitable for different equipment. 12-inch saw blades are used for handheld saws, and 18-inch saw blades are used for road cutting machine.
Features
Wear-resistant, durable and long life.
Wet and dry cutting.
Specially designed for asphalt cutting tools.
Can be used for handheld saws, road cutting machine equipment.
A variety of sizes are available, usually 300mm(12 inch)-600mm(24inch).
Specification
| Item No. | Diameter | Segment Height | Segment Width | Arbor |
| CALS30010 | 300mm | 10mm | 3.2mm | 25.4/20mm |
| CALS35010 | 350mm | 10mm | 3.2mm | 25.4mm |
| CALS40010 | 400mm | 10mm | 3.2mm | 25.4mm |
| CALS45010 | 450mm | 10mm | 3.6mm | 25.4mm |
| CALS50010 | 500mm | 10mm | 3.6mm | 25.4mm |
| CALS55010 | 550mm | 10mm | 3.6mm | 25.4mm |
| CALS60010 | 600mm | 10mm | 4.5mm | 25.4mm |
