Item No. | Diameter | Segment Height | Segment Width | Arbor |
SCBA10509 | 105mm | 9mm | 3.8mm | 22.23mm |
SCBA11509 | 115mm | 9mm | 3.8mm | 22.23mm |
SCBA12509 | 125mm | 9mm | 3.8mm | 22.23mm |
SCBA15009 | 150mm | 9mm | 3.8mm | 22.23mm |
SCBA18009 | 180mm | 9mm | 3.8mm | 22.23mm |

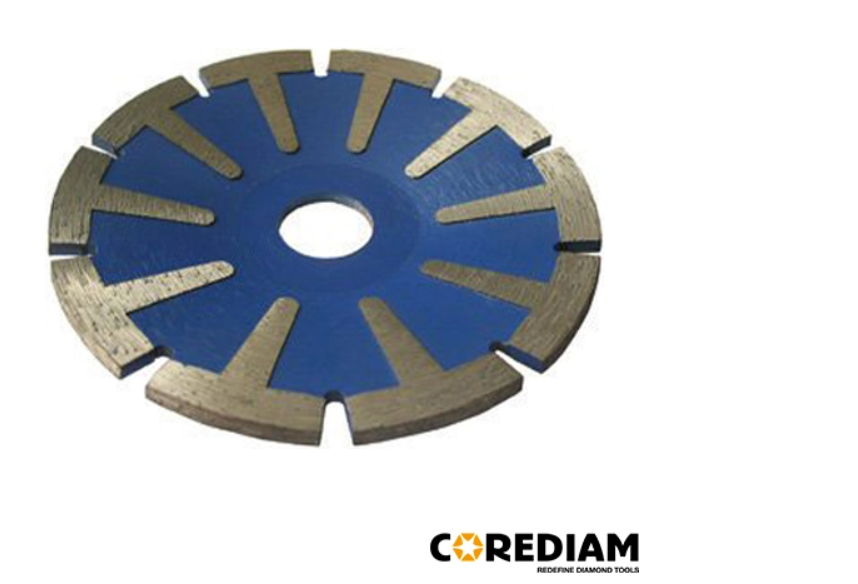

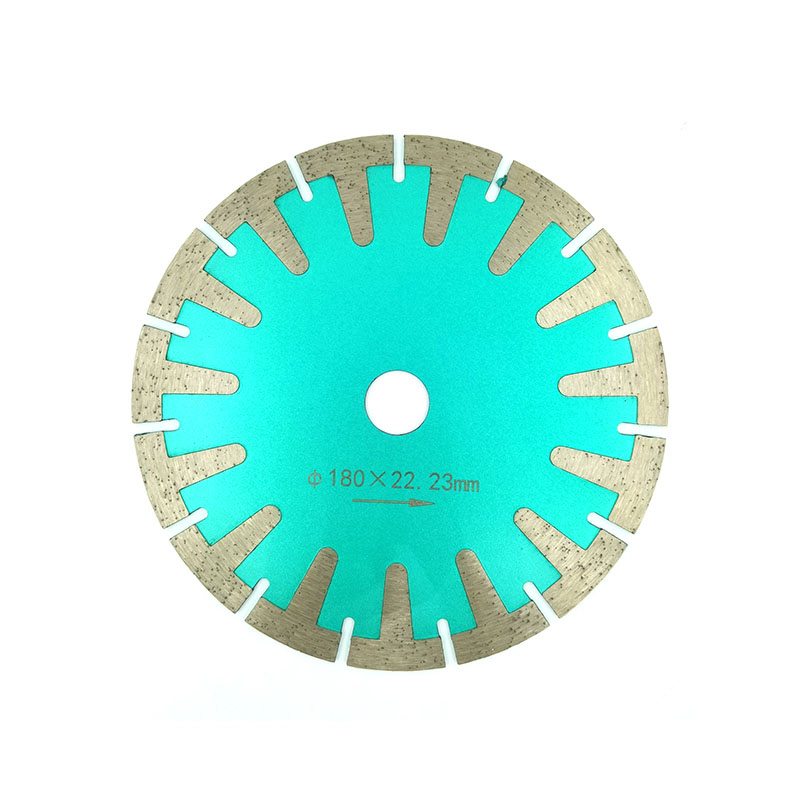

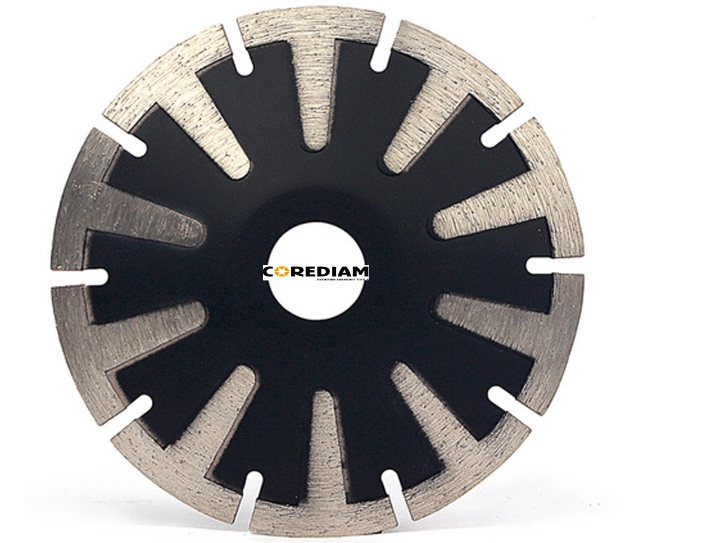

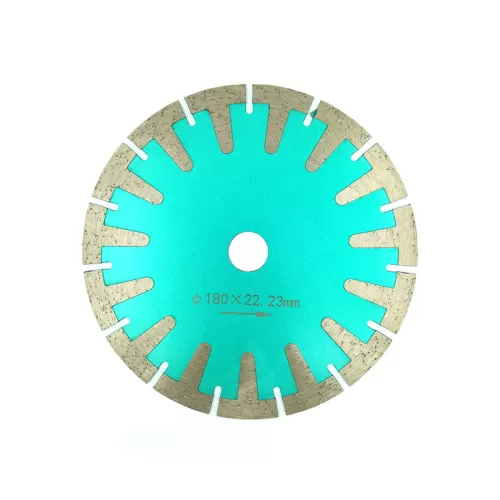

Concave blade Introduction
Turbo T Segment Diamond Concave Blade has deep T segment on both sides, it can improve cured cutting, minor grinding and help prevent binding for cured cutting in granite and marble. It has the following features: long lifespan, save your cost. Wet cutting blade, for stone sinks, fix on the angel grinder, convenient installation. The diameter ranges from 105mm to 180mm, other sizes can be customed as your request. OEM is accepted.
Materials & Equipment
Cutting materials: marble and granite.
Install equipment: angle grinder.
Features
- Suitable for dry/wet cutting
- offer the fastest and most reliable way to cut out holes in your natural stone slabs.
- The T-shape segments on both sides can improve cutting, minor grinding and help prevent binding for curved cutting granite and marble.
Corediam Service
We Corediam provide full diamond blade solution for your project, offering customized diamond blade dependent on the demand of your stone cutting project.
Delivery time
For sample test, we can finish preparation within 2 weeks
Our leading time will be about 2-3 weeks for the batch order.
Package
Besides the neutral white box package, we have the OEM finishing package such as individual blister and paper insert for the blade. We can also make the package as your design, and provide package design service too.
