Diamond Grinding Plate introduction

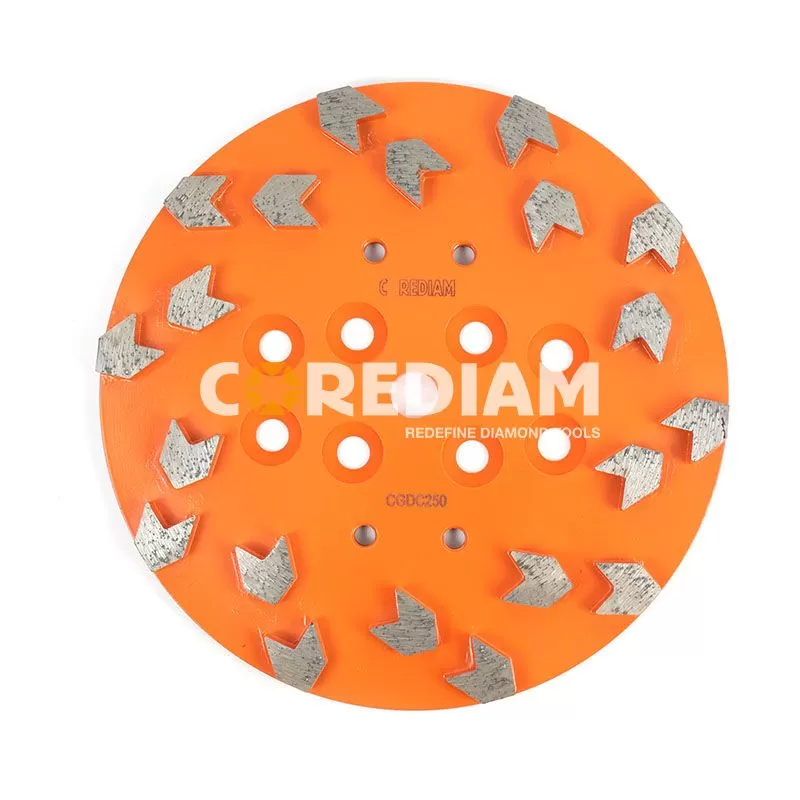

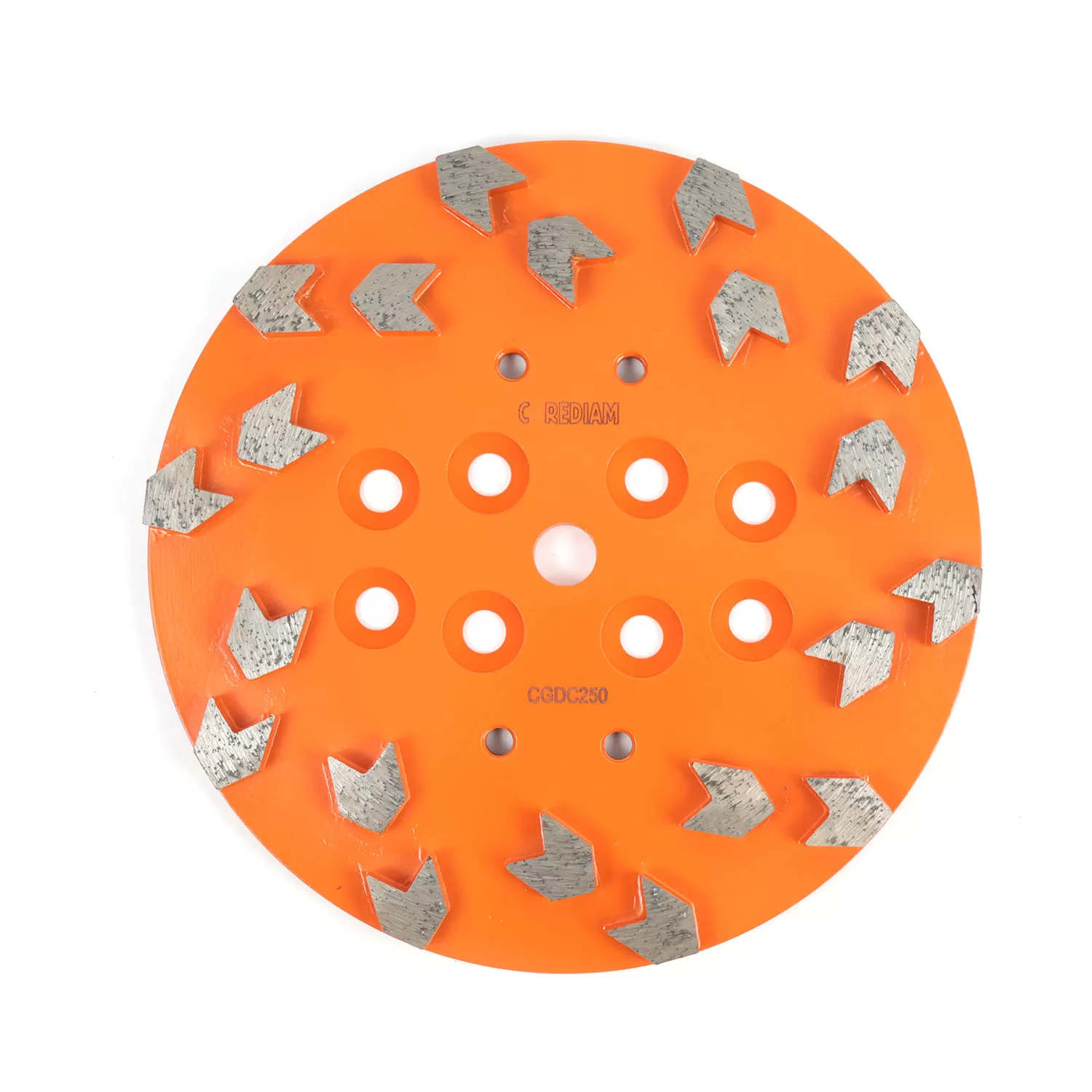

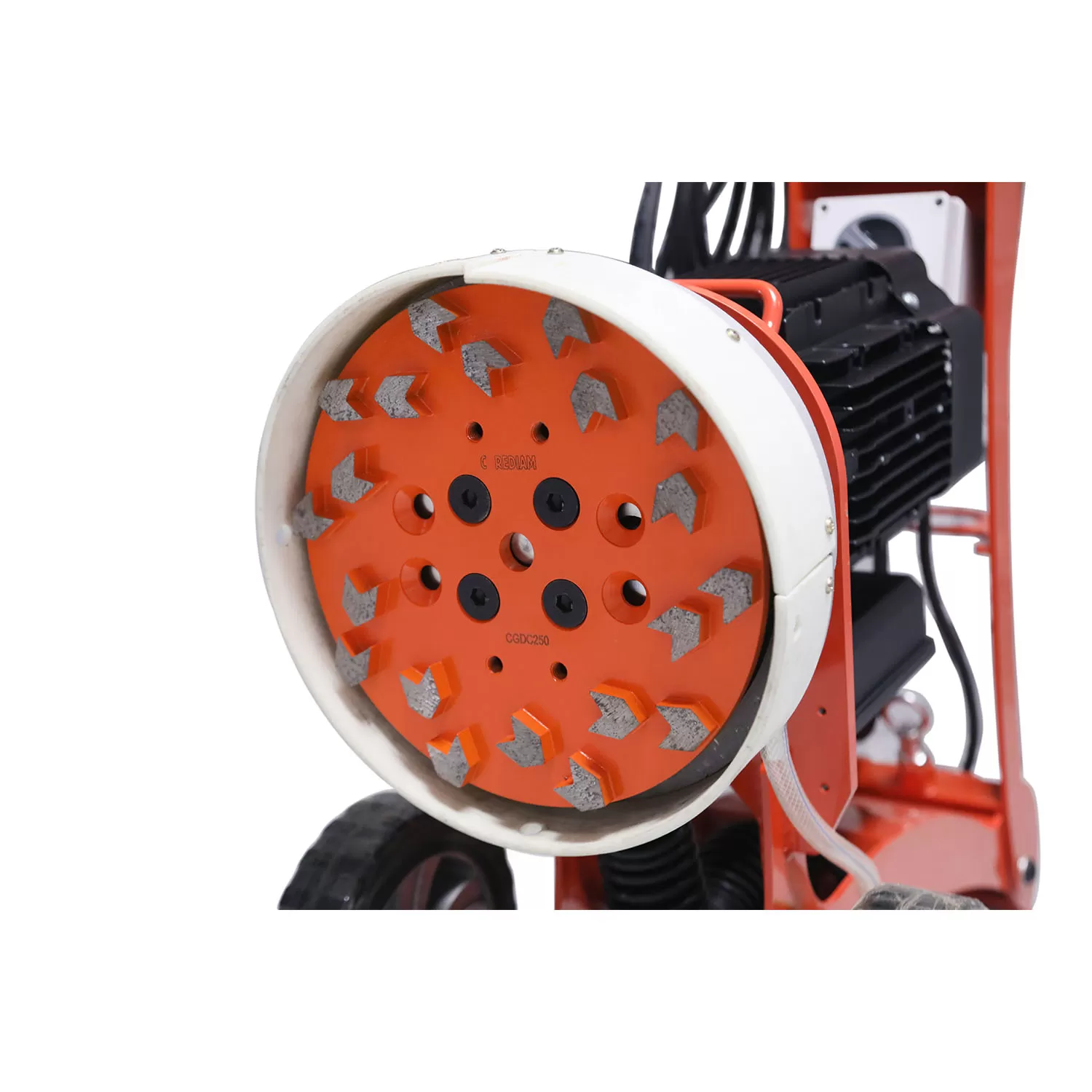

Diamond Grinding Plate With Arrow Segment is designed for installing on floor grinder, widely used for removal hard epoxies, urethane, and other coatings and toppings, for feathering uneven joints, or slab panels, for smoothing rough or patched concrete floor.
It's 10 inches in size, and brazed type, offering a smooth and fast grinding as well as a long using life.
Arrow special segments make much more aggressive removal.
We offer different diamond grits according to your requirement of the surface quality level. (Diamond Grit: Coarse 35/40; Medium 50/60; Fine 100/120)
Our Grinding cup wheel ranges include single row cup wheel, double row cup wheel, profile cup wheel, diamond grinding plate, diamond grinding head, and so on.

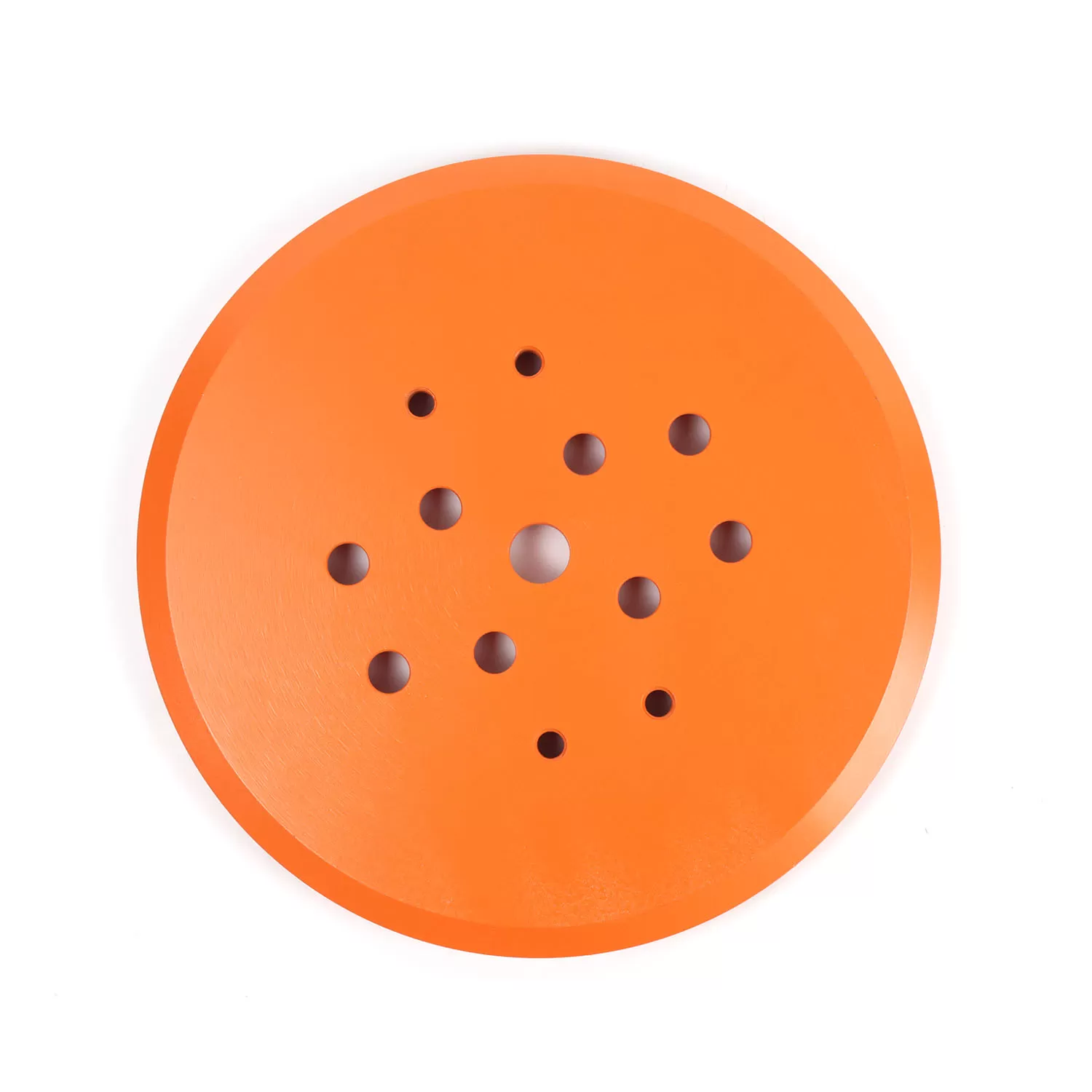

Cyclone type (light weight) steel core is available.
Specification
| Item No. | Diameter | Segment No. | Segment Thickness | Diamond Grit | ||
| CGDC254 | 250mm | 20 | 10mm | Coarse 35/40 | Medium 50/60 | Fine 100/120 |
Note
To choose the right diamond floor grinding shoe and diamond grinding cup wheels from suppliers, you must know the hardness of your concrete.
Concrete can be soft, hard, abrasive, dusty and brittle, etc. There are no two floors are ever the same, typically they are more abrasive when the floor is new or have a high sharp sand content. The more abrasive the floor the harder bond you will need to get the best performance out of the diamonds.
Bond - The strength of the metal binder that holds the diamond grit in the segment. Typically, the harder the bond the longer the life. Soft concrete needs the hard bond, medium-hard bond for medium concrete, and soft bond for hard concrete.
Choose Arrow segment, choose aggressiveness grinding plate!
Delivery Time
1 week for sample order, if we have stock and 2-3 weeks for batch orders.
