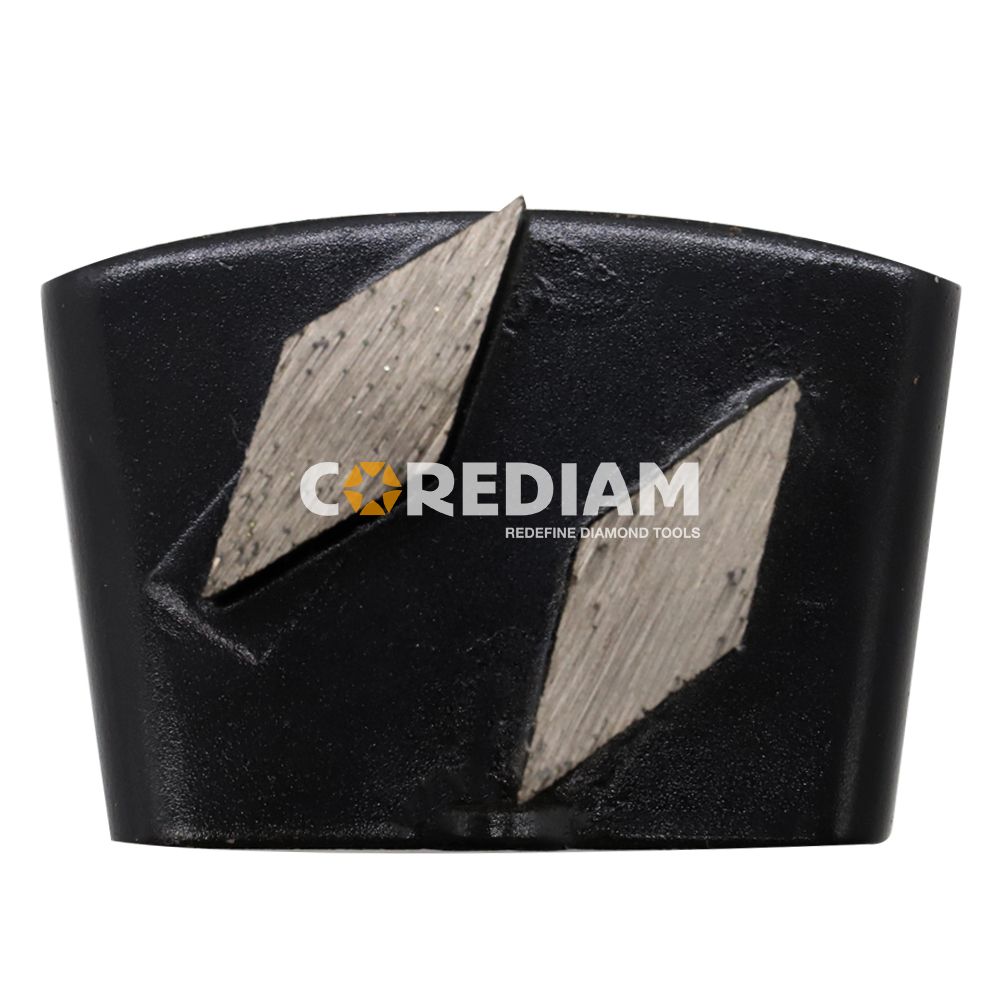

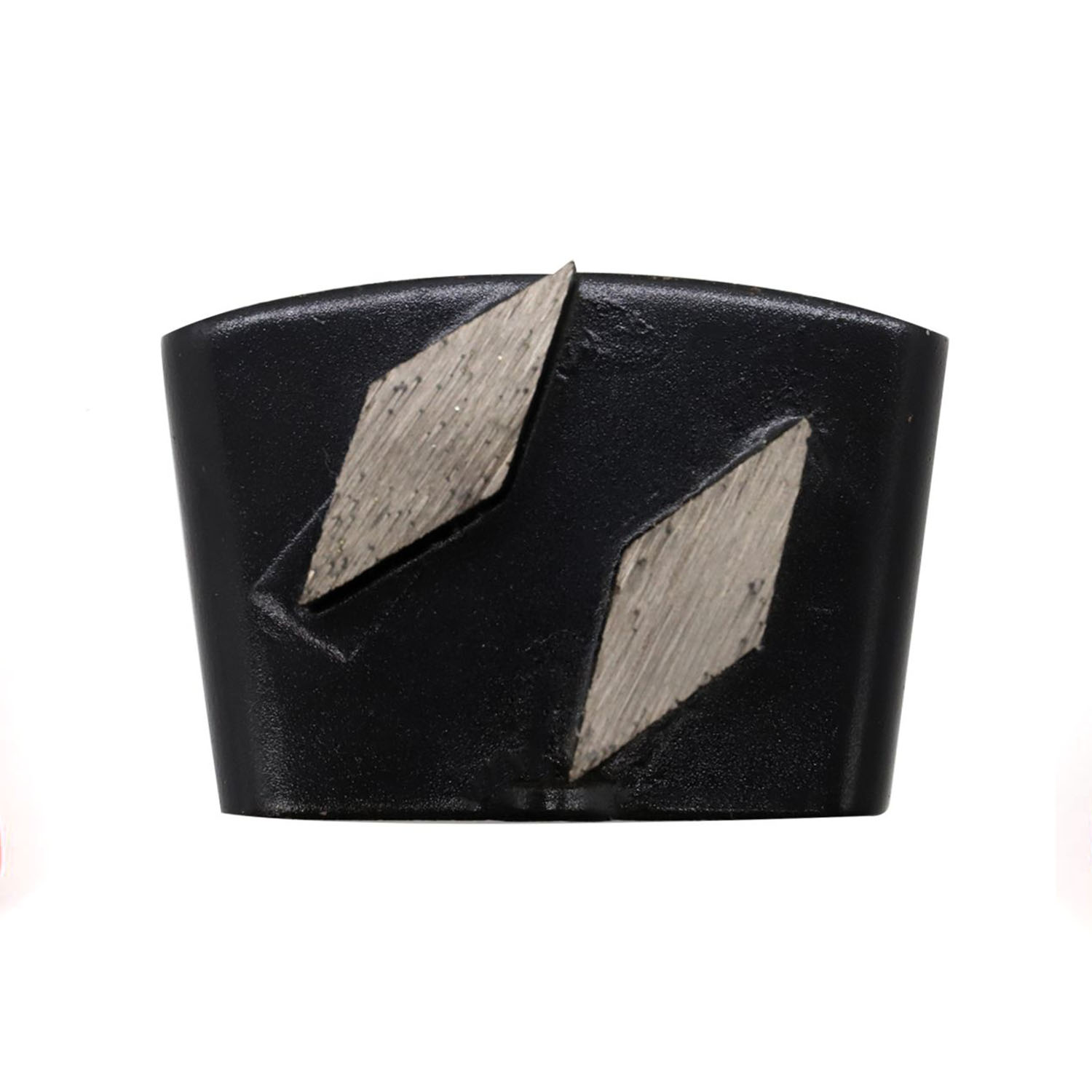

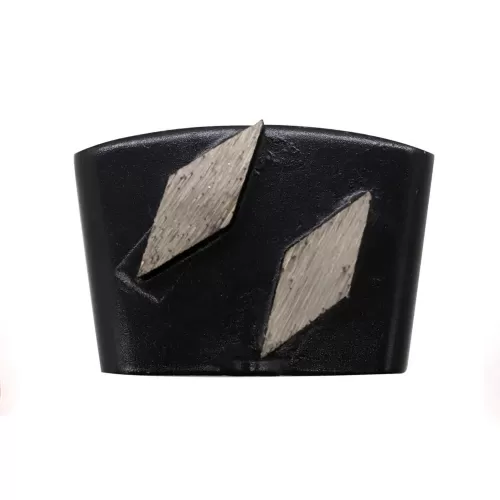

HTC Diamond Grinding Shoes For HTC Floor Grinder
| Item No. | Corediam-HTC Grinding Shoes |
| Product Name | Diamond Grinding Shoe / Grinding Head |
| Size Of Segment | 8-13mm height |
| Grit | 6#,16#,25#,30#,50#,60#,70#,120# |
| Bond | Soft, Medium hard, Hard |
| Segment Selections | Rectangle, Round, Hexagon, Rhomb, Arrow Shape, etc |
Applications
Grinding shoes are used for grinding different hardness of concrete and masonry materials with superior efficiency.
Specification
| Item No. | Segment No. | Segment Thickness | Diamond Grit | ||
| CGHTC12 | 2 | 12mm | Coarse 35/40 | Medium 50/60 | Fine 100/120 |
Note
To choose the right diamond floor grinding shoe and diamond grinding cup wheels from suppliers, you must know the hardness of your concrete.
Concrete can be soft, hard, abrasive, dusty and brittle, etc. There are no two floors are ever the same, typically they are more abrasive when the floor is new or have a high sharp sand content. The more abrasive the floor the harder bond you will need to get the best performance out of the diamonds.
Bond - The strength of the metal binder that holds the diamond grit in the segment. Typically the harder the bond the longer the life. Soft concrete needs the hard bond, medium-hard bond for medium concrete, and soft bond for hard concrete.
OEM Package
Besides the neutral white box package, we have the OEM finishing package such as individual blister and paper insert for the blade. We can also make the package as your design, and provide package design service too.
