Diamond Core Bits vs. Carbide

In the filed of drilling and cutting tools, two materials stand out: diamond and carbide. These materials have brought about a significant transformation in how we tackle drilling and cutting tasks across different industries, spanning from construction to manufacturing. Diamond core bits and carbide drill bits represent two distinct choices, each offering its own array of advantages and applications. In this article, we will explore the difference between Diamond Core Bits and Carbide to assist you in making well-informed decisions tailored to your particular requirements.

Diamond Core Bits

Superabrasive diamond-plated tools possess a significant advantage over carbide due to their exceptional durability and cutting speed, setting diamond tools apart from the competition. While diamond tools may come with a higher initial cost, this investment translates into an extended lifespan for the tool.

In addition, diamond tools offer a superior level of precision compared to carbide tools. When employed for cutting tasks, such as with a diamond hole saw, diamond tools effectively sand and erode the work material. This smoothing action results in highly precise cuts with minimal margin for error. Another distinguishing feature of diamond tools is their excellent thermal conductivity. They remain at lower temperatures for extended periods and effectively dissipate the heat generated from friction. This characteristic prevents the workpiece from burning and suffering damage. Moreover, diamond tools can be used without the need for coolant, and they will still not overheat. This not only maintains a cleaner workshop but also reduces the risk of accidents caused by slippery surfaces.

Carbide Core Bits

Carbide drill bits are primarily composed of metal, with two common variations: solid tungsten carbide or a metal body with tungsten carbide tips. These bits are favored by professionals across various industries due to their remarkable durability and extended lifespan. While they outperform hardened steel bits in terms of durability, they are not as long-lasting as diamond bits.

Like all metal drill bits, carbide bits are subject to wear and tear, which can result in dulling and even breakage over time. The good news is that you can sharpen carbide bits to extend their usefulness, but there's a limit to how many times you can do this before the material is worn away.

For optimal performance, carbide-tipped bits require the use of coolant to prevent overheating and burning. However, it's important to note that when coolant mixes with the drill effluent, it can create a messy sludge that necessitates frequent cleaning.

dotted segment diamond core drill bits for concrete drilling

Dotted diamond core drill bits is produced by high frequency welding technology, Available in a variety of sizes,It is often used for drilling concrete and other materials.

Inquire Now

Electroplated diamond dry core drill for drilling granite,marble with angle grinder

Inquire Now

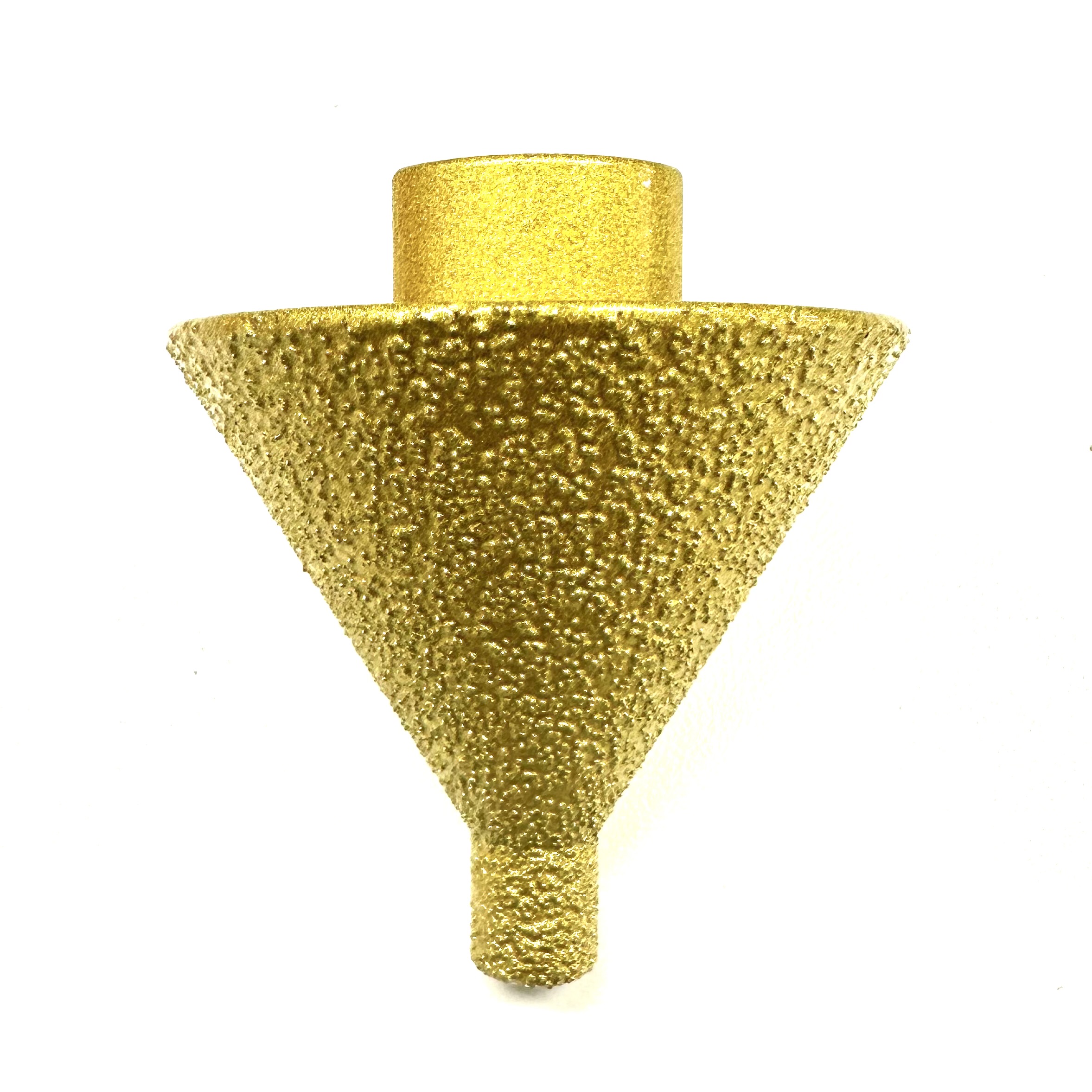

Vacuum Brazed Cone Core Bits, for stone drilling and chamfering

Vacuum Brazed Hole Saw and Diamond Core Drill Bit for stone drilling and chamfering

Inquire Now

Mesh roof-top segment wet diamond core drill bits

The Mesh Roof-top core drill bits are laser welded by the advanced Dr. Fritsch full-automatic laser welding machine, which ensures the Rooftop segments achieve high welding strength.

Inquire Now

350mm flat segment diamond core bits

The CWDA wet core drill is laser welded by the advanced Dr. Fritsch full-automatic laser welding machine, which ensures the core bits to achieve high welding strength.

Inquire Now

Three Parts Diamond Core Drill Bits

Three parts diamond core drill bits include the crown bit, steel tube and thread connector parts. It's the laser welded technology core bits.

Inquire Now

Laser Welded Dimple Core Drill Bits

The CWDD dimple core drill bits are laser welded by the advanced Dr. Fritsch full-automatic laser welding machine, which ensures the dimple segments achieve high welding strength.

Inquire Now

Lightning Segment Diamond core drill with 10mm segment height

Laser welded lightning segment diamond core drill is by the advanced Dr. Fritsch full-automatic laser welding machine,achieves the sharp and fast drilling performance,for wet drilling concrete and other hard materiales with core drilling machine or hand drill,which ensures the achieve high welding strength.

Inquire Now

Laser Welded Dry Diamond Core Bits With Turbo Segment

The CDCD dry core drill bits are laser welded by the advanced Dr. Fritsch full-automatic laser welding machine, which ensures the core bits to achieve high welding strength.

Inquire Now

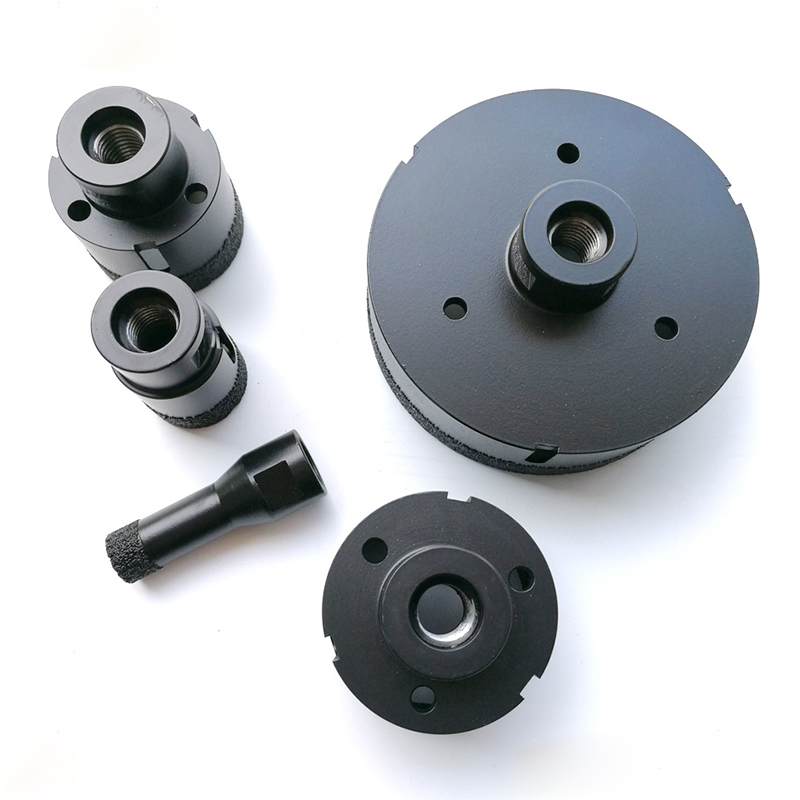

Vacuum Brazed Hole Saw and Diamond Core Drill Bit for Granite/Marble/Porcelain

Vacuum brazed core drill is brazed in vacuum equipment, which ensures diamonds have the good combination with the tube.Vacuum brazed core bits is used for professionally drilling kinds of natural stones, tiles.

Inquire Now

Vacuum Brazed Hole Core Bits, double drilling, for stone drilling

Vacuum Brazed Hole Saw and Diamond Core Drill Bit for stone drilling and chamfering

Inquire Now

laser welded diamond core drill bits for dry drilling granite,marble

Inquire Now

Products

Diamond Core Bits vs. Carbide

Choosing Between Diamond Core Bits and Carbide Drill Bits

Material Type:

Diamond Core Bits: These are ideal for drilling into hard and abrasive materials like concrete, granite, or glass. They excel in applications where traditional bits might wear out quickly.
Carbide Drill Bits: Carbide bits work well with a wide range of materials, including wood, metal, plastic, and softer masonry.

Precision and Cleanliness:

Diamond Core Bits: They provide a cleaner and more precise cut, making them suitable for tasks where precision and smooth edges are critical, such as in glass or tile cutting.
Carbide Drill Bits: Carbide bits are versatile but may leave rougher edges and may not be as suitable for applications that require high precision.

Speed and Efficiency:

Diamond Core Bits: Diamond bits are generally slower in drilling but can be more efficient in hard materials due to their durability and extended lifespan.
Carbide Drill Bits: Carbide bits are faster and more efficient in softer materials, making them a better choice for many common drilling tasks.

Cost:

Diamond Core Bits: These are typically more expensive upfront but can be cost-effective if you frequently work with hard materials, as they have a longer lifespan.
Carbide Drill Bits: Carbide bits are more budget-friendly initially but may need replacement more often, especially in heavy-duty applications.

Task Specificity:

Diamond Core Bits: Choose these when you have specialized drilling needs in materials like concrete, glass, or ceramics.
Carbide Drill Bits: Carbide bits are versatile and can handle a wide array of drilling tasks, making them a good choice for general use.

Work Environment:

Diamond Core Bits: They produce less dust and are preferred for indoor projects where dust control is essential.
Carbide Drill Bits: Carbide bits can generate more debris, so they may be better suited for outdoor applications or situations where dust control is not a concern.
