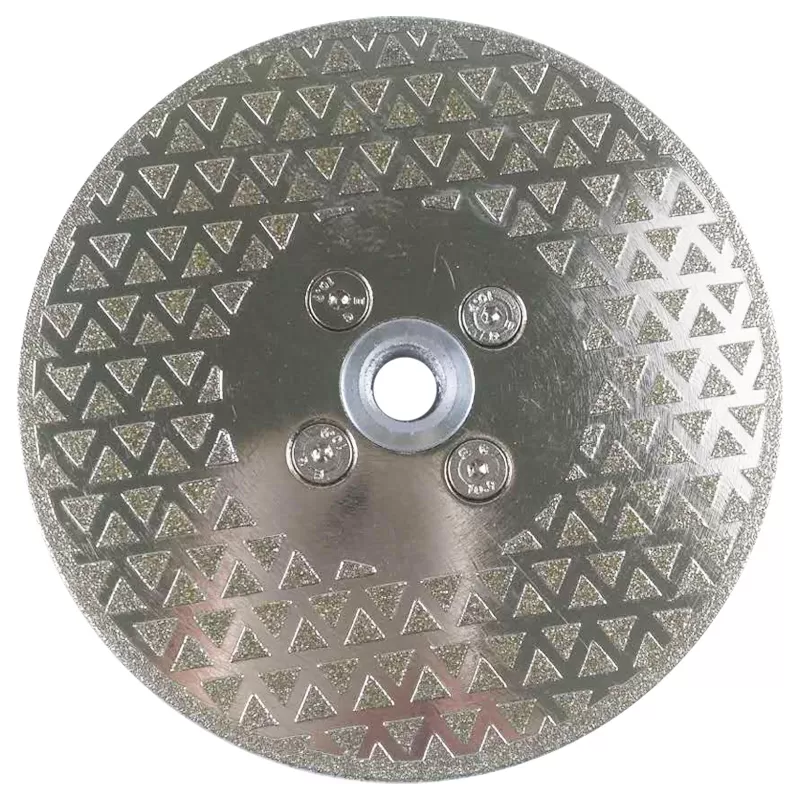

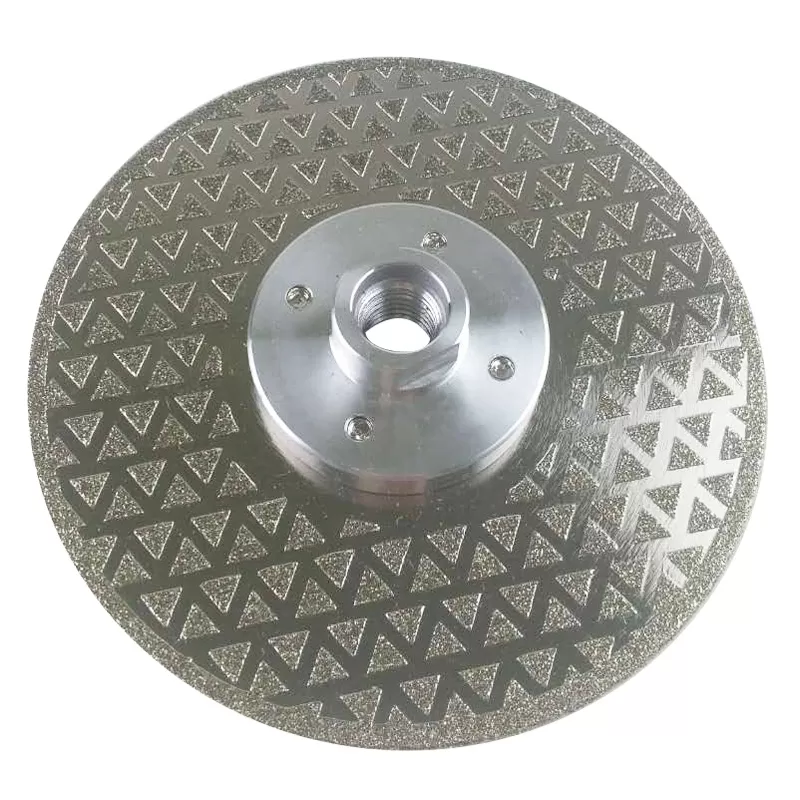

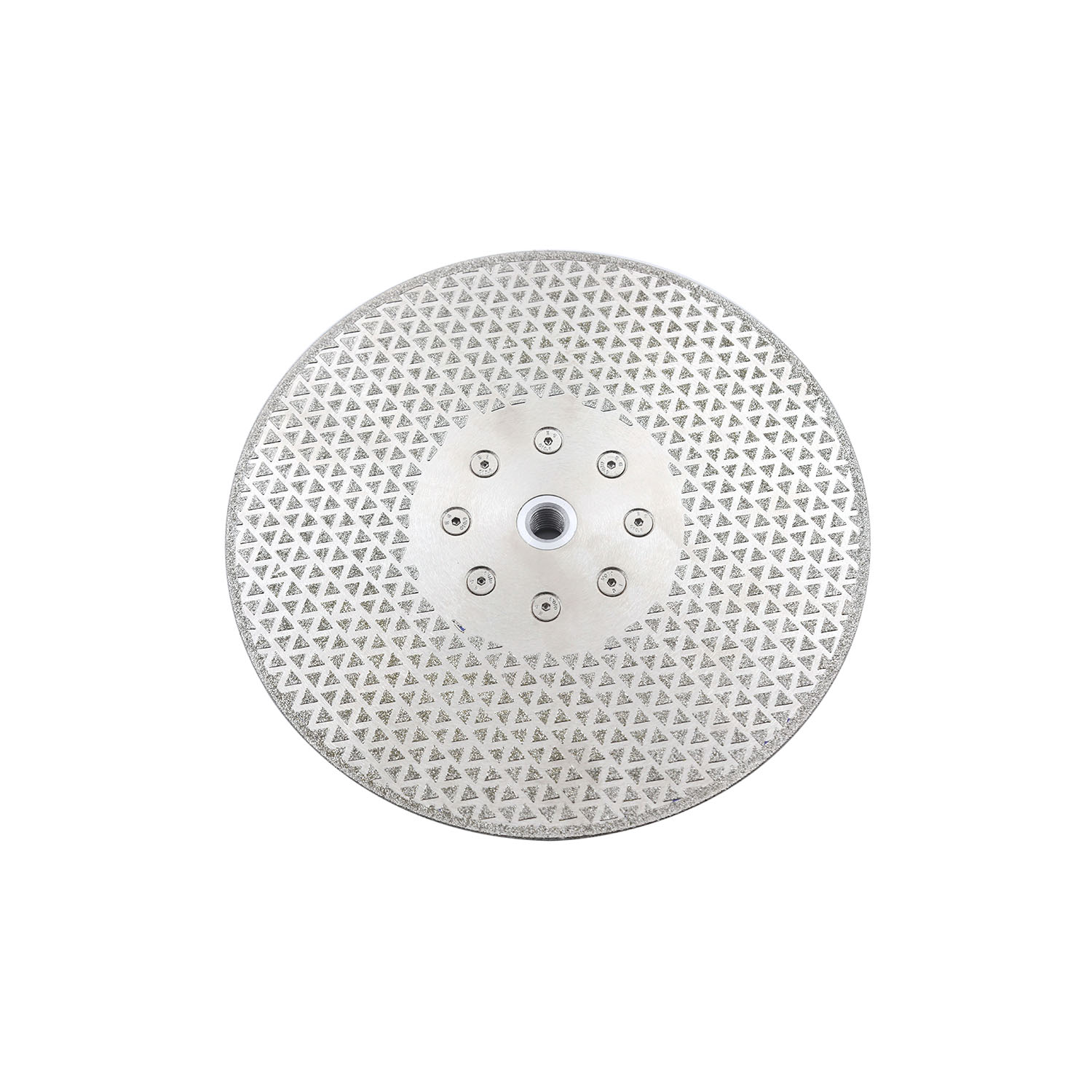

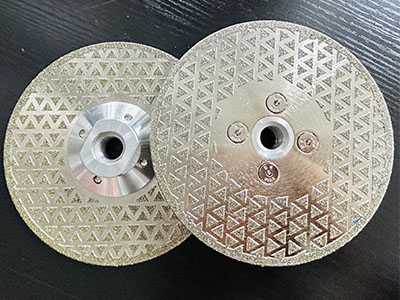

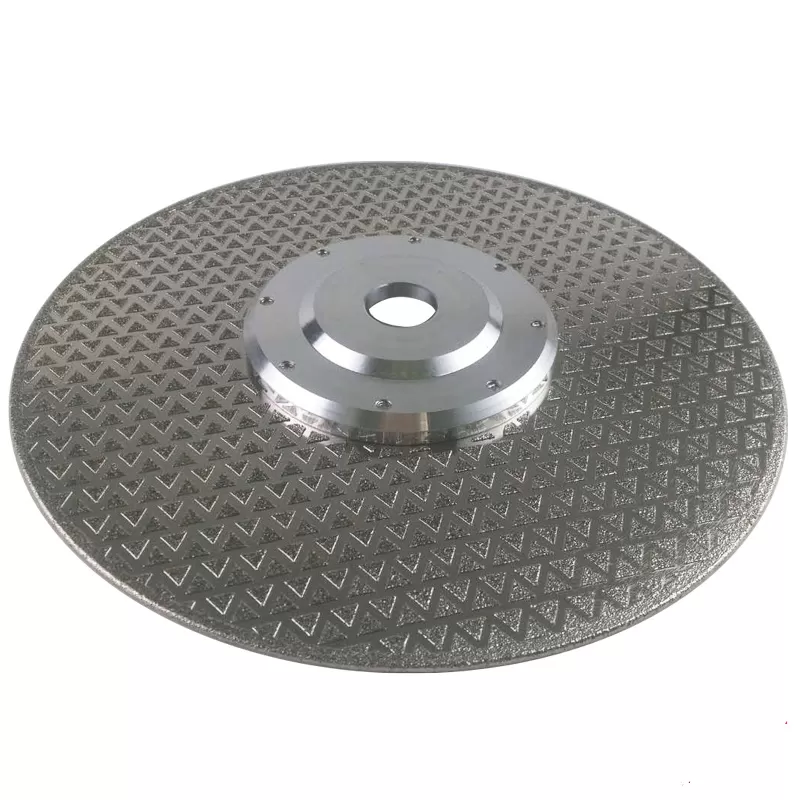

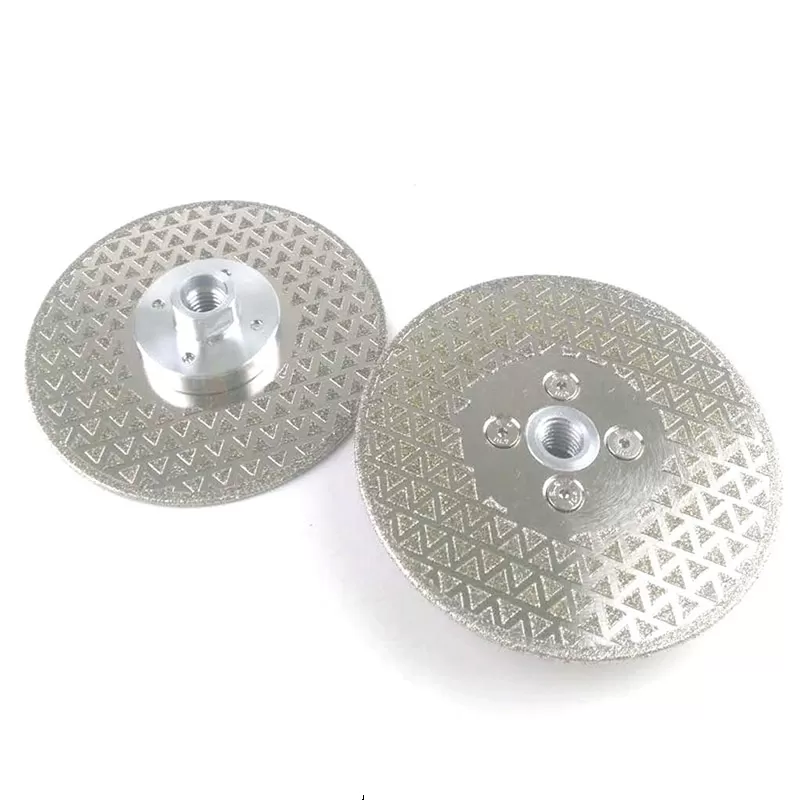

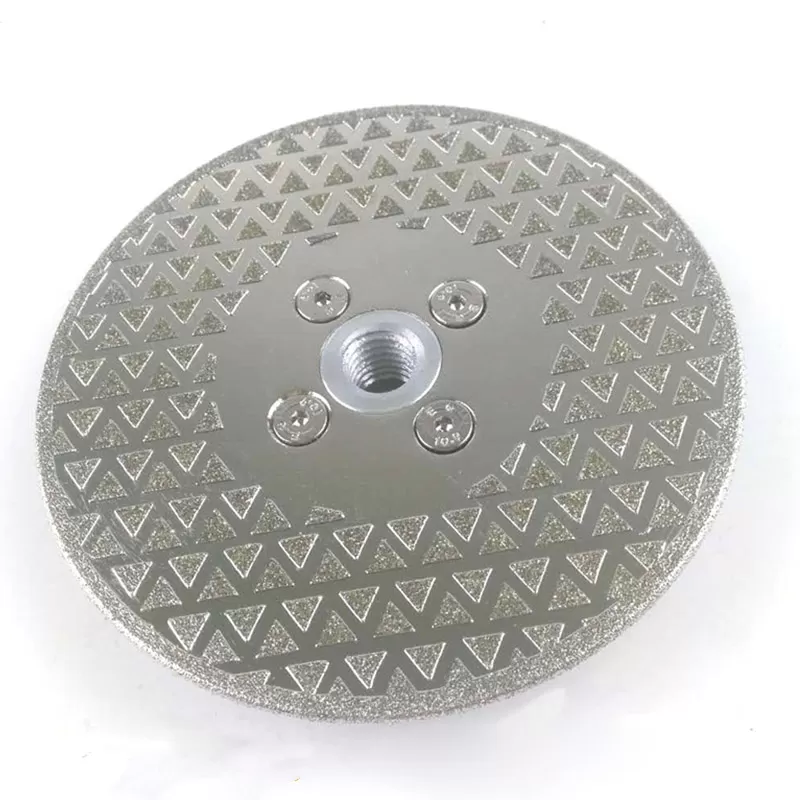

This type of blade is two sides starred electroplated saw blade, the continuous rim is perfect for smooth.
Electroplated saw blade is taken use of electroplated technology to produce blade. Specially designed for cutting for granite, marble, glass, concrete, tile and ceramic etc. The diameter is 230mm. We could produce different grit of blades to meet your need. It can be installed in angle grinder and circular saw. Special steel core upon request is available.
Product Description
This electroplated diamond blade features a continuous rim edge design, ensuring smooth and precise cuts with no chipping, ideal for materials like marble,ceramic,tile.
Available in common sizes such as 4.5 inch, 5 inch,7 inch.
The electroplating process makes the diamond particles more firmly bonded to the matrix, not easy to fall off, and the service life of the saw blade is longer.
It can not only be used for cutting, but also for grinding various marble, tiles, ceramics and other materials.
| Item No. | Diameter | Segment Height | Arbor |
| SEBC10503 | 105mm | 3mm | 22.23mm |
| SEBC11503 | 115mm | 3mm | 22.23mm |
| SEBC12503 | 125mm | 3mm | 22.23mm |
| SEBC15003 | 150mm | 3mm | 22.23mm |
| SEBC18003 | 180mm | 3mm | 22.23mm |
| SEBC23003 | 230mm | 3mm | 22.23mm |
Features
- Light and easily-carried.
- The continuous rim is perfect for smooth.
- For precise, straight and aggressive cuts.
- Low-cost electroplated blade for stone.
- Especially for cutting stones, with the feather of better sharpness, no crushed edge, and long service life.
Delivery time
Sample delivery: If we have stock, the delivery time is within one week after we got your sample payment.
If we don't have stock, the delivery time will depend on the sample production.
For batch order, delivery time is usually 3-4 weeks after order confirmation and payment.
Package
In addition to neutral white box packaging, we also have OEM finishing packaging, such as individual blisters and paper inserts for blades. We can also make packaging as per your design and provide packaging design services.
Diamond blades: OEM packaging.
○ UV printing, laser marking or labeling.
○ Double blister + inner card or normal white box/corrugated white box.
○ Color box customized packaging.
Corediam Service
We Corediam provide full diamond blade solution for your project, offering customized diamond blade dependent on the demand of your stone cutting project.
Corediam testing process
