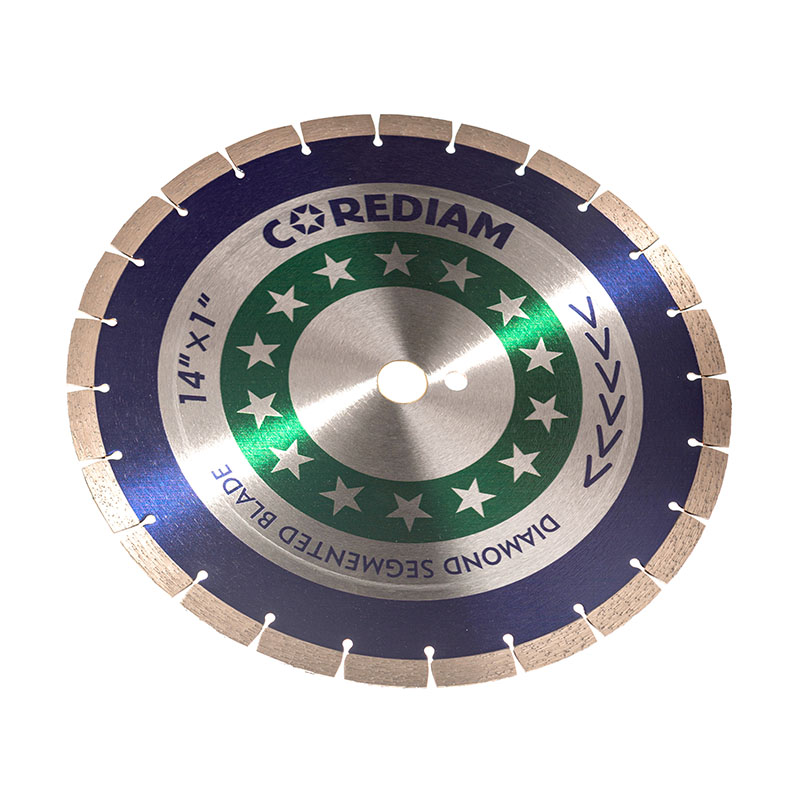

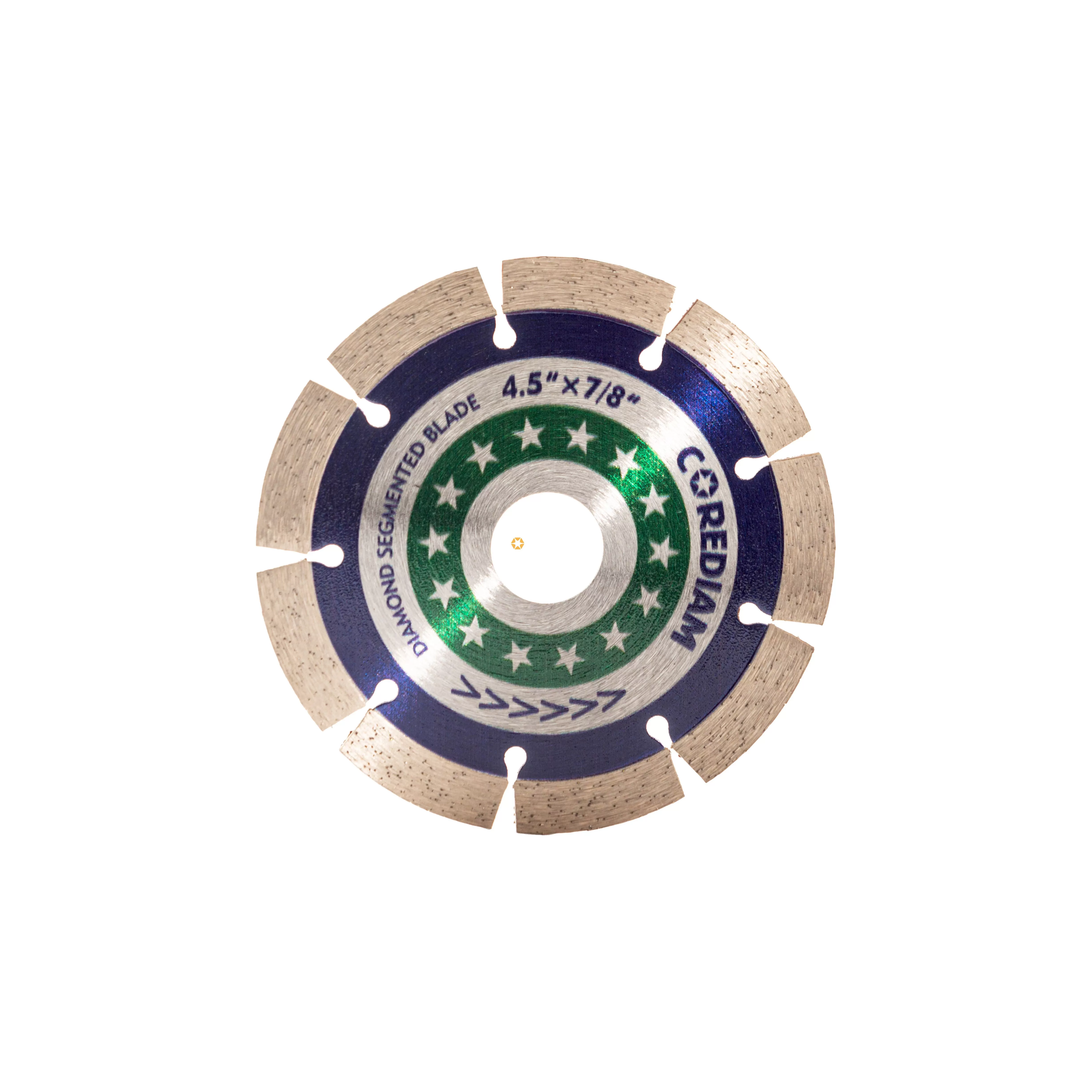

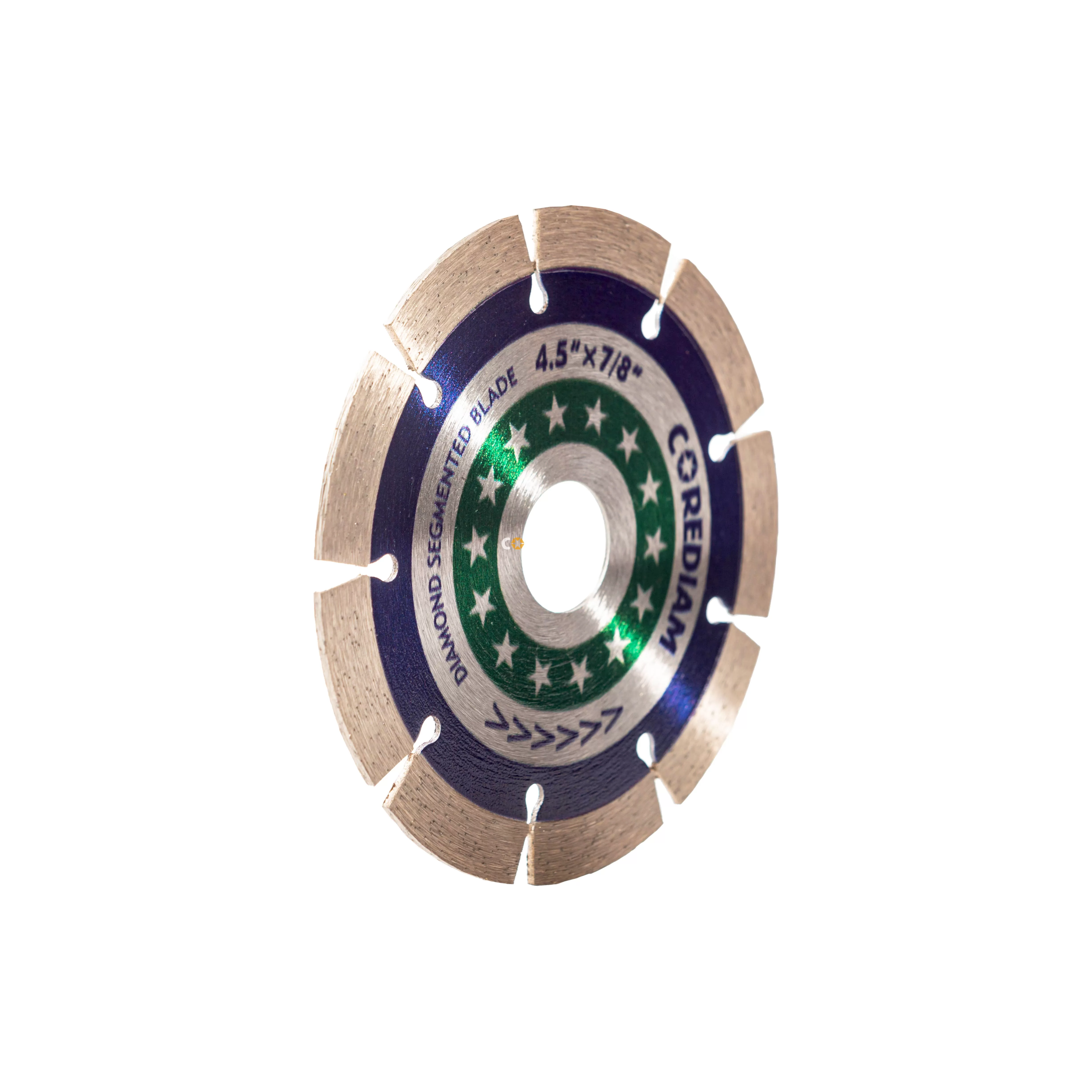

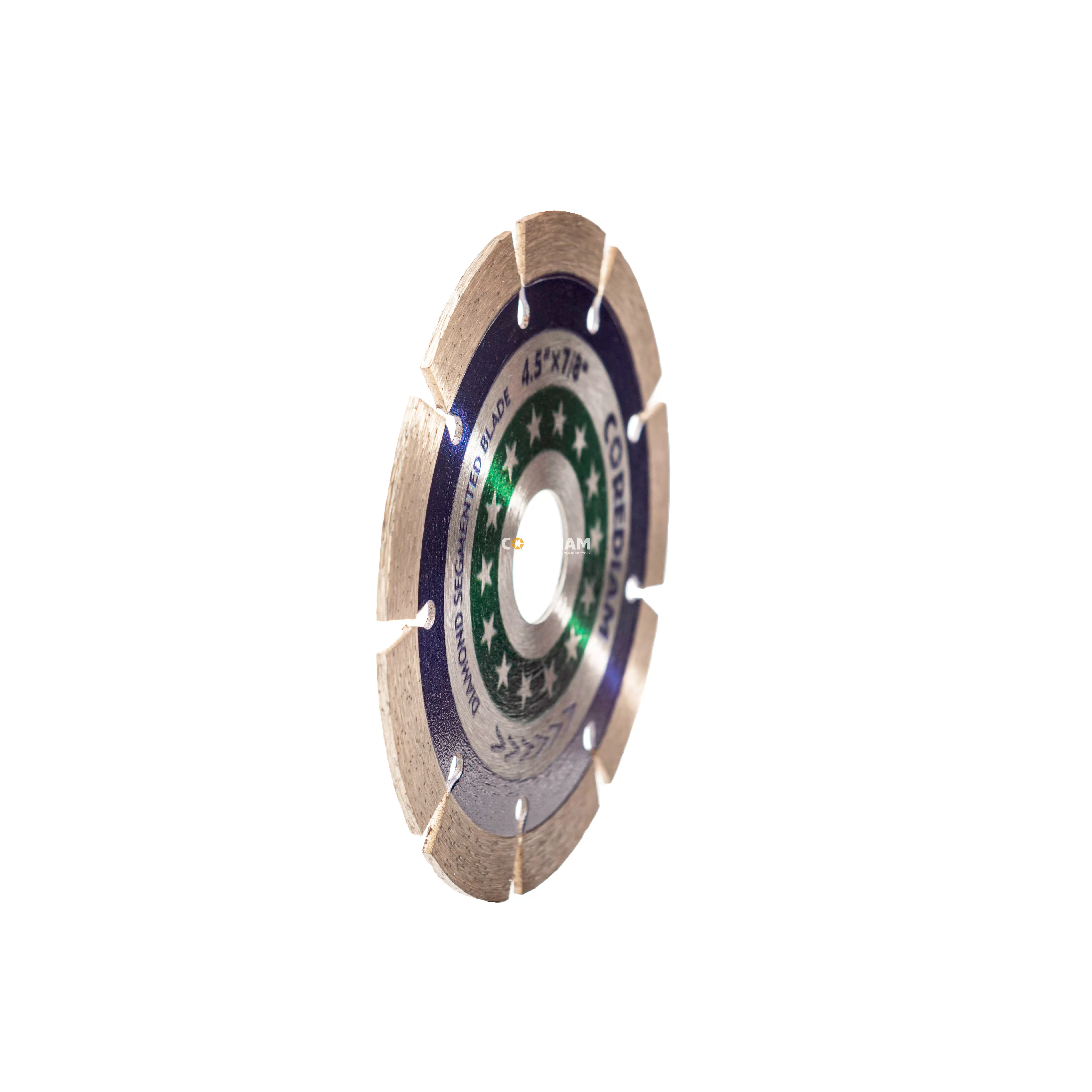

The sinter hot-pressed segmented diamond saw blade.
It achieves a faster cutting speed and longer cutting life-span in different materials.
Diamond segmented cutting blade is suitable to be used on the angle grinders, circular saws, tile saws, hand-held power saw. Please follow the safety symbols before the cutting work starts.
It’s Universal application in dry or wet cutting.
Superior Quality designed for fast speed and stable life to cut Concrete, Block, Paver, Brick, Masonry and Stone and other abrasive materials.
Features
Segmented Diamond Saw Blade for Angle Grinder General Purpose Cutting Concrete, Block, Paver, Brick, Masonry and Stone, Wet/Dry Cut, DM-7/8" Arbor with 5/8" copper bushing
Diameter optional：4.5 inch,5 inch,7 inch,9 inch,12 inch,14 inch;
Manufacturing Technique: Sinter Hot-pressed Segmented Diamond Saw Blade.
It’s Universal application in dry or wet cutting.
It is designed for fast speed and stable life to cut Concrete, Block, Paver, Brick, Masonry and Stone and other abrasive materials.
Product Parameters

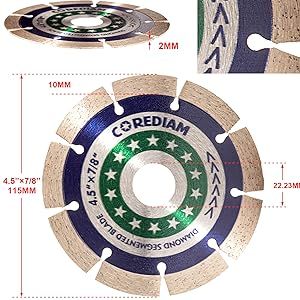

| Item No. | Diameter | Segment Height | Segment Width | Arbor |
| CGSG10510 | 105mm | 10mm | 2.0mm | 22.23/20mm |
| CGSG11510 | 115mm | 10mm | 2.0mm | 22.23mm |
| CGSG12510 | 125mm | 10mm | 2.0mm | 22.23mm |
| CGSG15010 | 150mm | 10mm | 2.2mm | 22.23mm |
| CGSG18010 | 180mm | 10mm | 2.4mm | 22.23mm |
| CGSG23010 | 230mm | 10mm | 2.6mm | 22.23mm |
| CGSG30010 | 300mm | 10mm | 3.0mm | 25.4/20mm |
| CGSG35010 | 350mm | 10mm | 3.2mm | 25.4mm |
| CGSG40010 | 400mm | 10mm | 3.2mm | 25.4mm |
Application
Segmented diamond saw blades cut through concrete, blocks, pavers, bricks, masonry and stone, and other abrasive materials.
Segmented diamond cutting blade is suitable to be used on the angle grinders, circular saws, tile saws, hand-held power saw.
Package

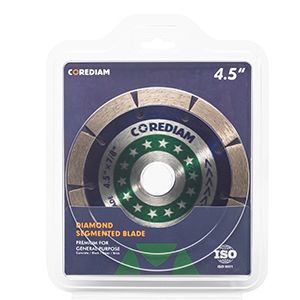

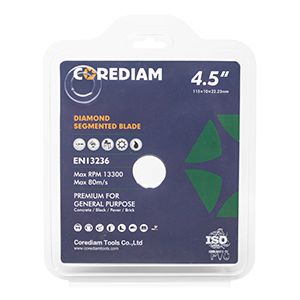

Double Plastic Blister Package with color paper card. Please follow the safety symbols and instructions on the blade and package before the cutting work starts.
Shipping
we could ship by Commercial Express,like UPS,DHL,FedEx,we could also ship by air,by sea,by land as your request.
Company profile
Corediam Tools Co., Ltd, as a high-tech enterprise, concentrates on researching & developing, manufacturing and marketing diamond tools industry.We have the most extensive, innovative and powerful range of diamond tools for Construction, Stone and DIY markets. Corediam strives to be the leading professional supplier in the world by technology innovation.
PRODUCTS
The main product ranges include laser welded saw blade, brazing saw blade, sinter hot-pressed saw blade, diamond grinding cup wheel, laser welded core drill, diamond wire etc. The advanced automatic pressing, sintering, German Dr.Fritsch full-automatic laser welding machinery have been adopted in man
ufacturing lines, and all the products are approved by rigorous inspection and quality control process. Corediam products are also authenticated by Germany MPA standard and European Union EN13236 Standard.
Today Corediam export-sales network has rapidly expanded to more than 50 countries, including North America, Europe, Middle East, Southeast Asia and South America. In China, a perfect long-term strategic cooperative partnership has been established between us and the diamond tools distributors.
As a reliable supplier of global diamond tools industry, we also focus on the professional total solutions of cutting, grinding and drilling for end users. In global, we provide the clients of mega project, such as road bridge, building renovation, railway, airport, stone mine, fire protection, and nuclear power plant, with professional diamond tools product and solutions, which is used in road saw, wire saw, wall saw, core drill, stone saw and grinding machine. It ensures that users can complete a great job.
