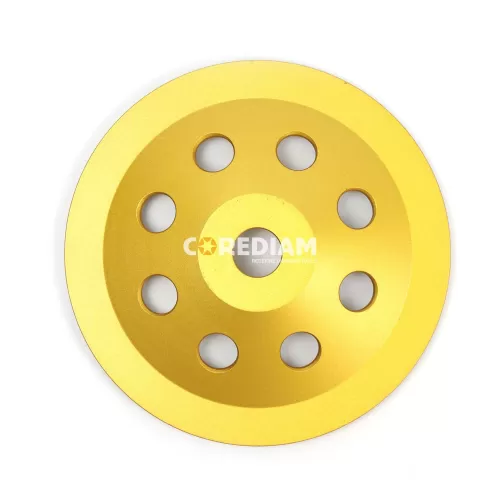

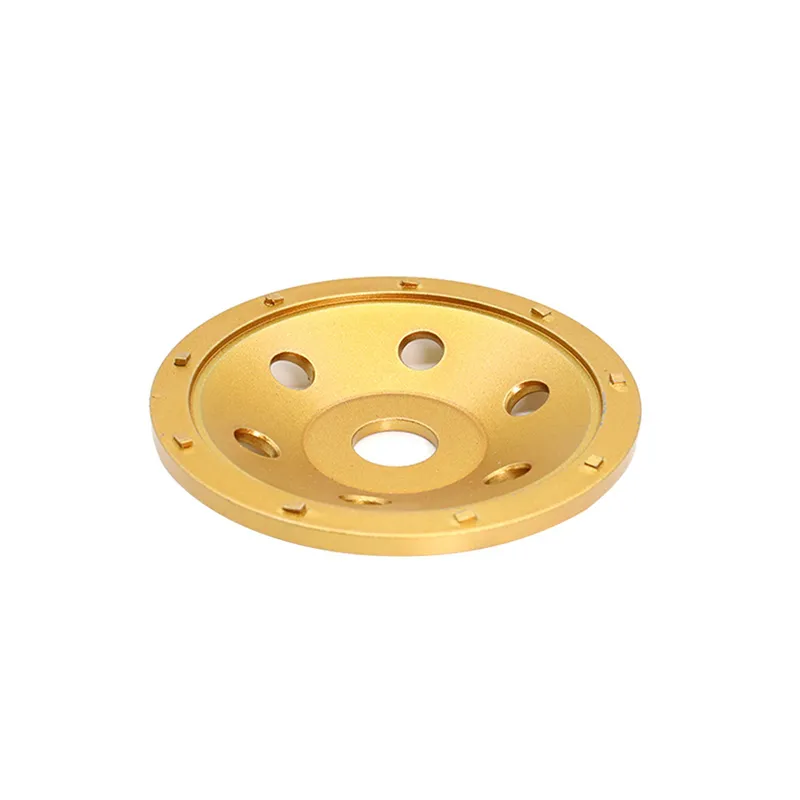

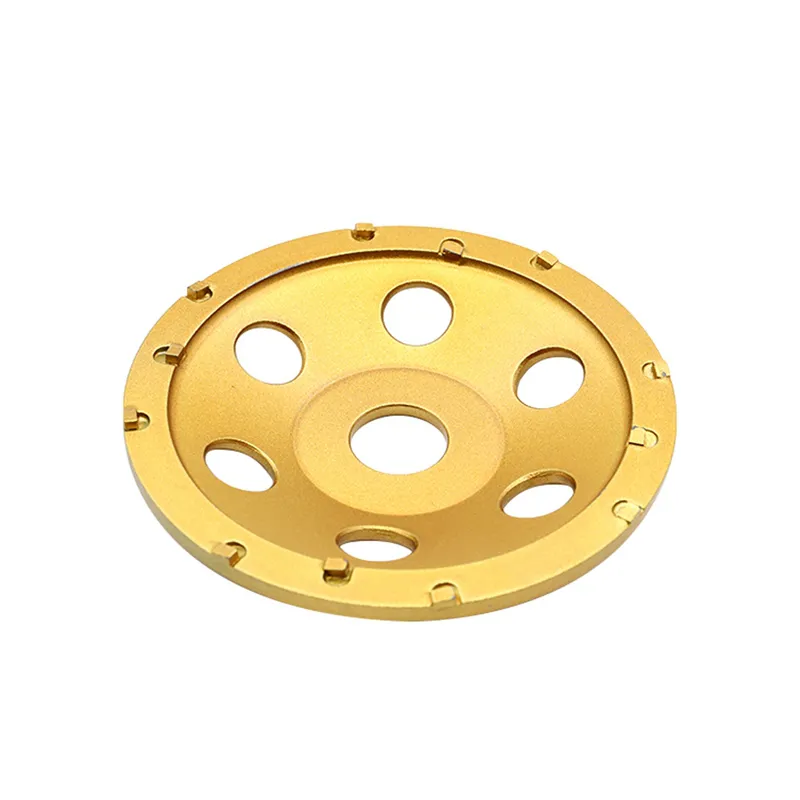

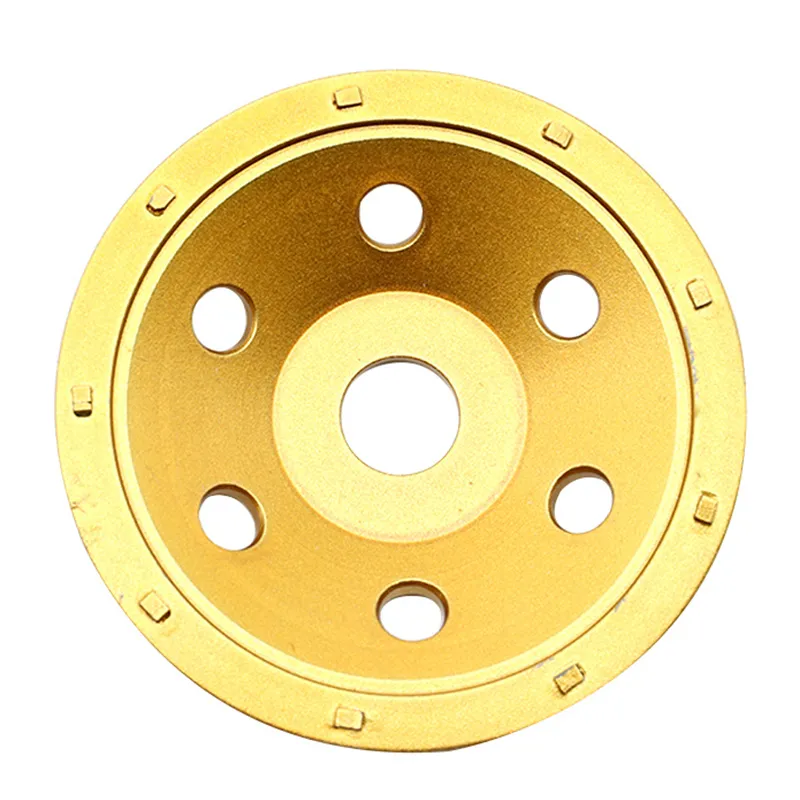

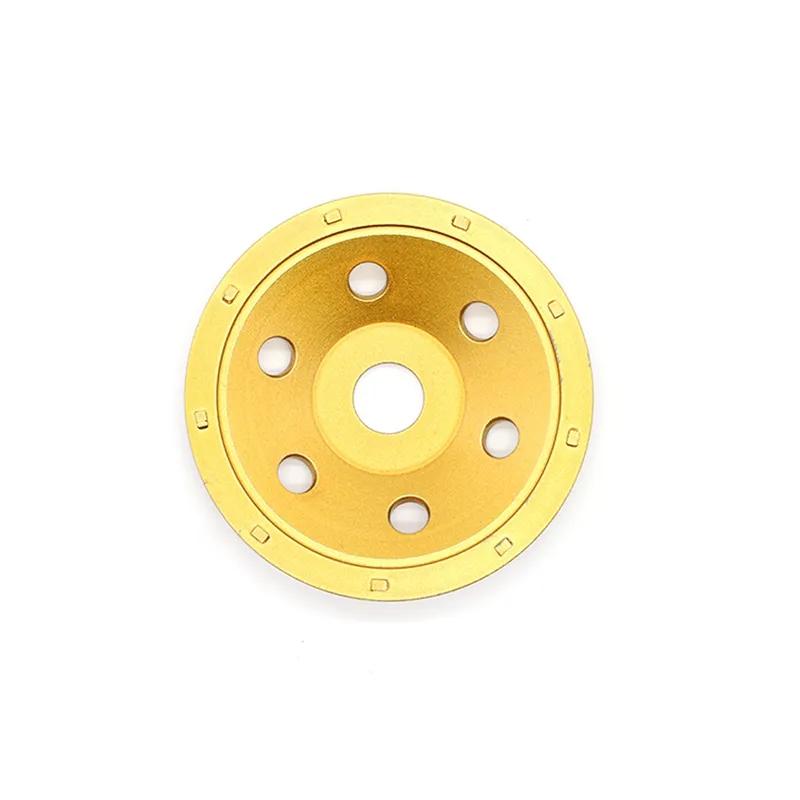

This type of cup wheel is PCD cup wheel, it can be widely applicated for removing epoxy coating, sticky mastics and glue.
Features
The super abrasive PCD tooling is designed to remove very thick coating such as epoxy and paint on the surface of concrete.
Diameter ranges from 4-inches to 7-inch
Different grade to choose
Specifications
PCD Grinding Cup Wheel - C Type
| Picture | Diameter (mm) | Segment Size (mm) | Segment No. | Arbor (mm) | Metal Bond | Arbor |
 | 115 | 3x2.4x4.5 | 9 | 22.23 | PCD | Premium |
| 125 | 3x2.4x4.5 | 9 | 22.23 | PCD | Premium | |
| 150 | 3x2.4x4.5 | 15 | 22.23 | PCD | Premium | |
| 180 | 3x2.4x4.5 | 18 | 22.23 | PCD | Premium |
PCD Grinding Cup Wheel - D Type
| Picture | Diameter (mm) | Segment Size (mm) | Segment No. | Arbor (mm) | Metal Bond | Quality Level |
 | 115 | 3x2.4x4.5 | 9 | 22.23 | PCD | Premium |
| 125 | 3x2.4x4.5 | 12 | 22.23 | PCD | Premium | |
| 150 | 3x2.4x4.5 | 15 | 22.23 | PCD | Premium | |
| 180 | 3x2.4x4.5 | 18 | 22.23 | PCD | Premium |
1 week for sample order, and 2-3 weeks for batch orders.
OEM Package
Besides the neutral white box package, we have the OEM finishing package such as individual blister and paper insert for the blade. We can also make the package as your design, and provide package design service too.
