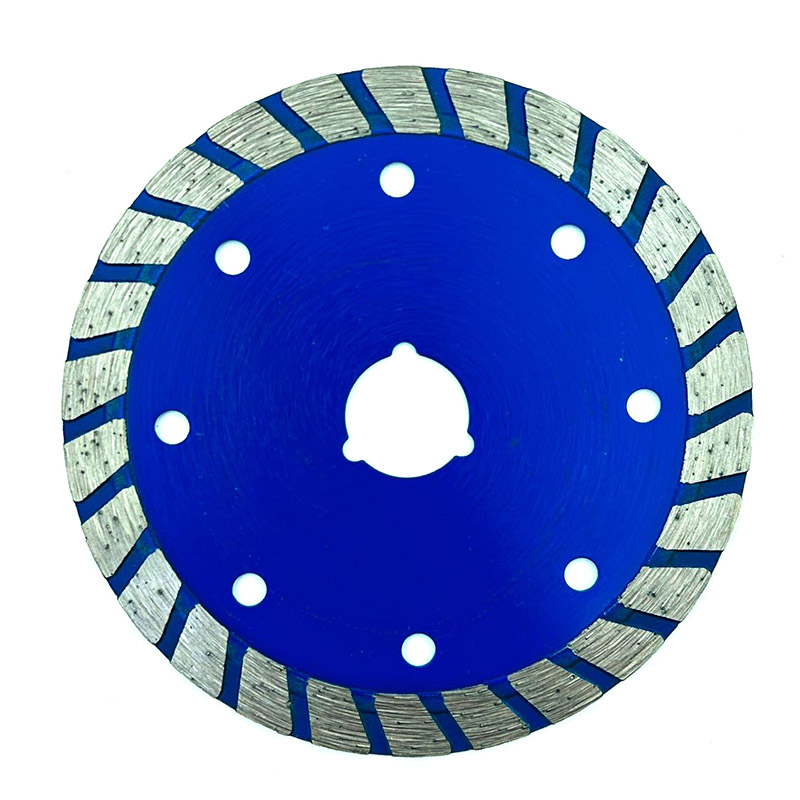

The diameter of this turbo type blade is 105mm,115mm and 125mm. It is sinter hot-pressed, the segment height is 10mm, the arbor is 20mm.
It can be widely used in wet cutting granite, marble and other stone materials with good efficiency.
Turbo type segments can make fast cutting speed with a clean edge and no chipping. Specially designed fine turbo teeth and the mature bond system offers extremely fast and smooth cutting.
Specification for reference: (others also available as per required)
| Item No. | Diameter | Segment Height | Segment Thickness | Arbor |
| STBC10512 | 105mm | 10mm | 2.0mm | 20mm |
| STBC11512 | 115mm | 10mm | 2.0mm | 20mm |
| STBC12512 | 125mm | 10mm | 2.0mm | 20mm |
Cutting materials & equipment
Cutting materials: granite, marble and other stone materials with good efficiency.
Install equipment: angle grinder, circular saw, tile saw.
Features:
1) Universal dry and wet cutting blades.
2) Small cutting width.
3) Turbo segment for better cooling and better dust removal, the deep segment style can well be protected the blades from undercutting.
Production process.
Raw material→ powder mixing→steel core→cold press→sintering→surface treatment→packaging→dispatch
Delivery time
Sample delivery:
If we have stock, the delivery time is within one week after we got your sample payment.
If we don't have stock, the delivery time will depend on the sample production.
For batch order, delivery time is usually 3-4 weeks after order confirmation and payment.
