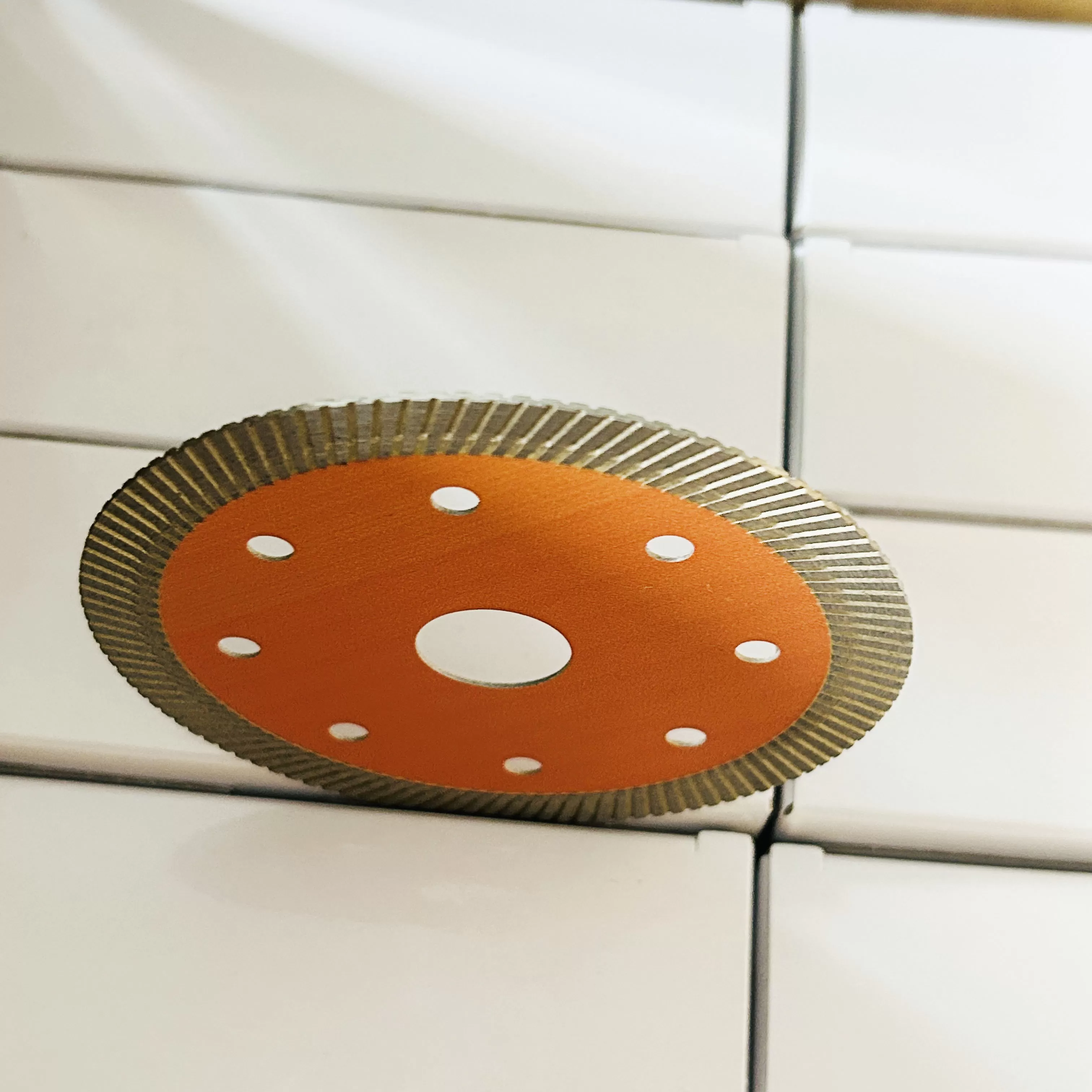

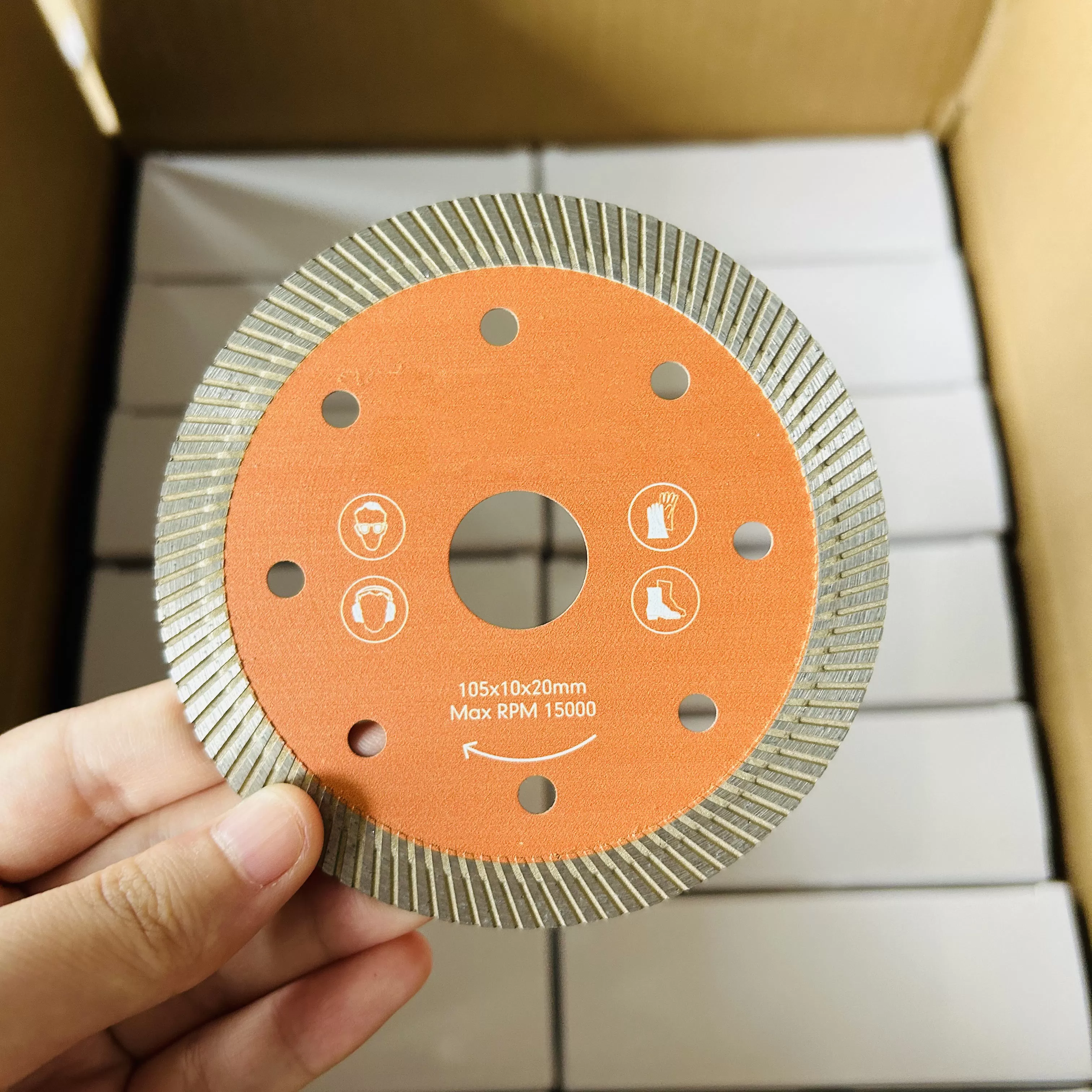

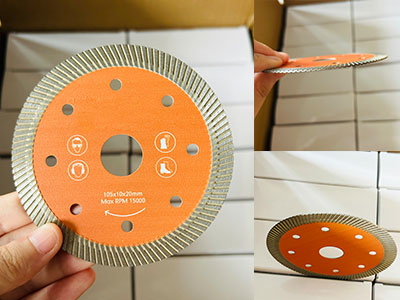

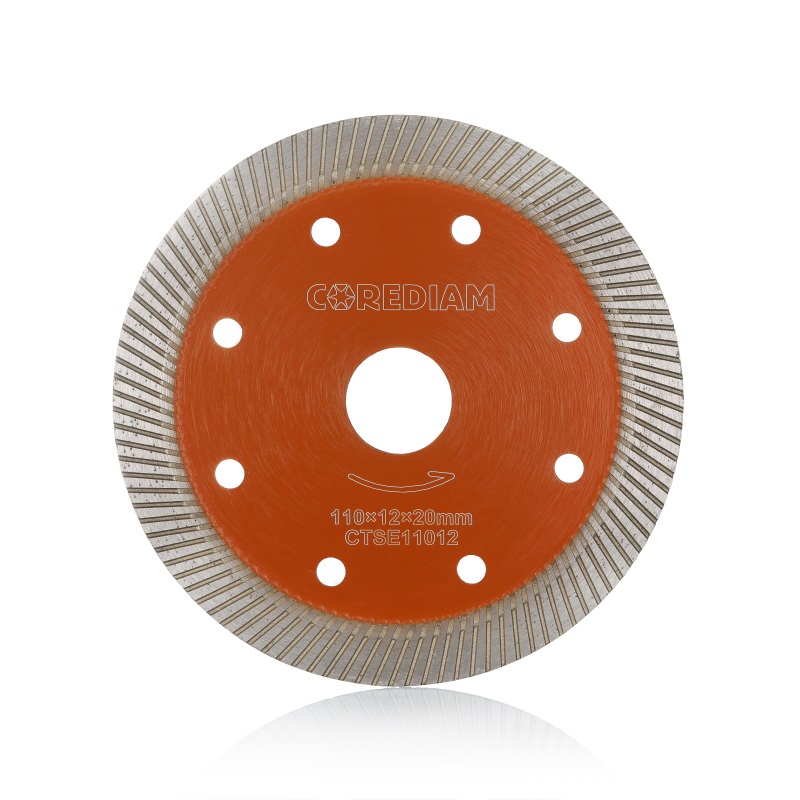

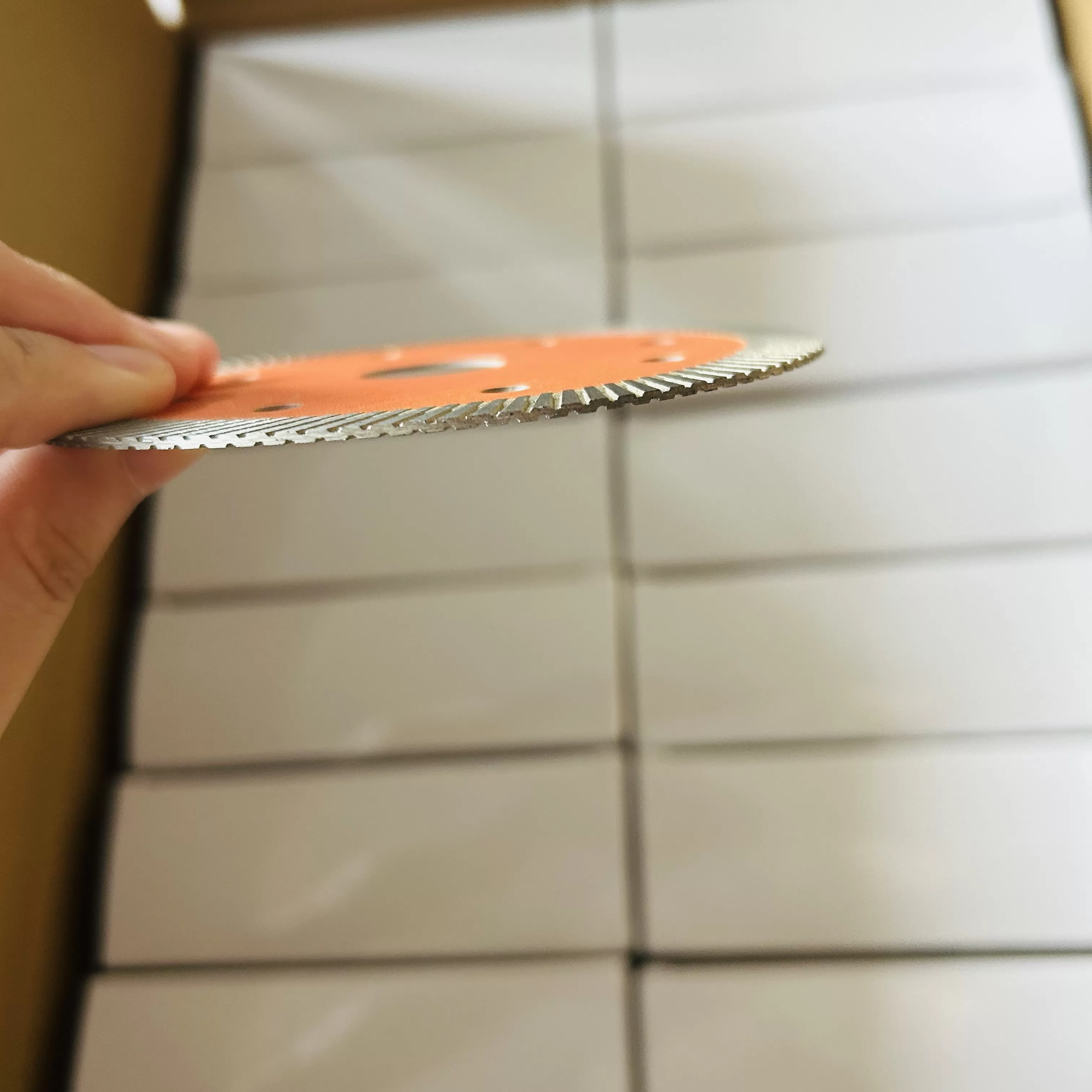

It is sinter hot-pressed, the segment thickness is 1.2mm, with ultra thin segment,The cutting edge is clean and without chipping.
It can be widely used in cutting tile,ceramic,porcelain with good efficiency.
Specification for reference: (others also available as per required)
| Item No. | Diameter | Segment Height | Segment Thickness | Arbor |
| CTST105 | 105mm | 10mm | 1.2mm | 22.23/20mm |
| CTST110 | 110mm | 12mm | 1.2mm | 22.23/20mm |
| CTST115 | 115mm | 10mm | 1.2mm | 22.23mm |
| CTST125 | 125mm | 10mm | 1.2mm | 22.23mm |
Features:
1) Universal dry and wet cutting blades.
2) Small cutting width.
3) Turbo segment for better cooling and better dust removal, the deep segment style can well be protected the blades from undercutting.
Production process.

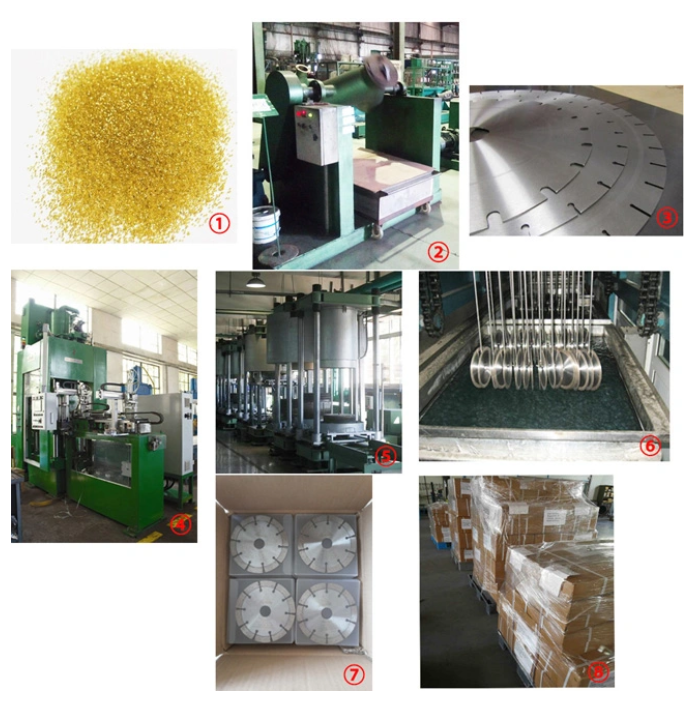

Raw material→ powder mixing→steel core→cold press→sintering→surface treatment→packaging→dispatch
Delivery time
Sample delivery:
If we have stock, the delivery time is within one week after we got your sample payment.
If we don't have stock, the delivery time will depend on the sample production.
For batch order, delivery time is usually 3-4 weeks after order confirmation and payment.
